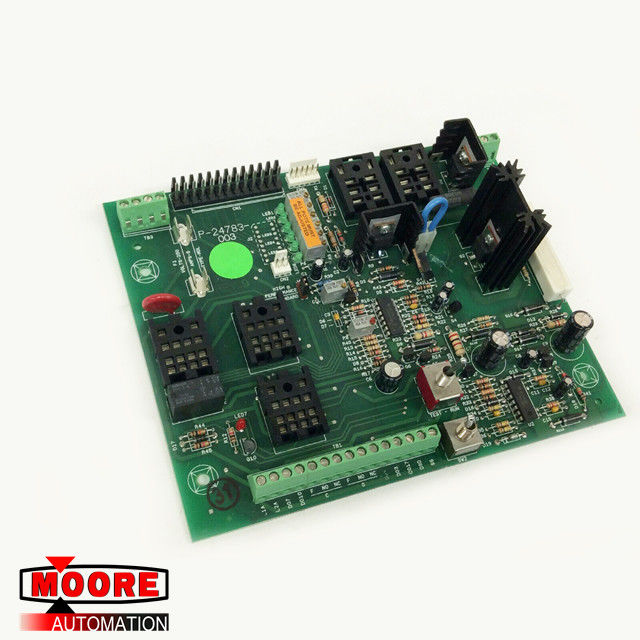

P-24783-003 P24783003 KONE Elevator Door Operator Board
| Brand/Manufacturer |
KONE/Finland |
| Part Number |
P-24783-003
|
| Alternate Part Number |
P-24783-003
|
| Description |
Elevator Door Operator Board |
| Dimennsions |
16.2 cm x 14.6 cm x 3.1 cm |
| Weight |
0.46kg |
Product Details
Technical data
Rated supply voltage: 3x43V~
Rated installed load: 0.5 kVA
Rate DC-link voltage: 60V
Minimum DC-link voltage: 18V
Rated output current: 6A
Peak output current : 20A
Switch-on threshold of ballast circuit: 85V
Switch-off threshold of ballast circuit: 75V
Pulse power of ballast circuit: 1000W
Continuous power of ballast circuit: 35W
Overvoltage switch-off threshold: 100V
Form factor of the output current (under rated conditions with 0.5mH min. load inductance of the motor ) : 1.01
Bandwidth of the subordinate current controller: 1 kHz
Output stage clock frequency: 8.5 kHz
Residual voltage drop at rated current V 4
Quiescent dissipation, output stage disabled: 7W
Dissipation at rated current ( incl. power supply losses, without ballast dissipation ): 40W
Auxiliary voltage outputs : 15V
