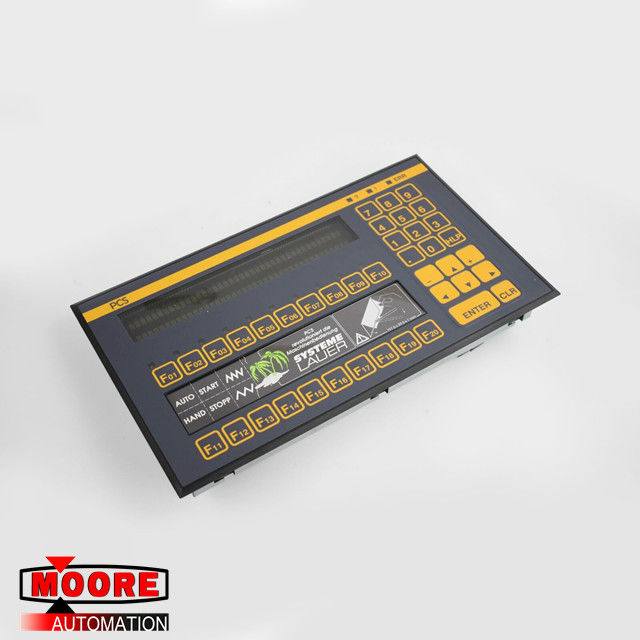

PCS 110FZ LAUER Operator Panel
| Brand/Manufacturer |
LAUER/USA
|
| Part Number |
PCS 110FZ
|
| Alternate Part Number |
PCS 110FZ
|
| Description |
Operator Panel |
| Dimennsions |
33.0 cm x 20.3 cm x 5.1 cm |
| Weight |
1.6kg |
Product Details
Features
Display: 2 x 20 characters
Interface: MP²I
User memory: 256 kB
Languages: DE (without Umlaut), EN, RU
Project engineering only via VIPA OP-Manager
Technical data
Power supply (rated value) :DC 24 V
Power supply (permitted range): DC 20.4...28.8 V
Reverse polarity protection Yes
Current consumption (no-load operation): 80 mA
Current consumption (rated value): 500 mA
Inrush current: 55 A
Material: die-cast aluminum
Mounting: via integrated pivoted lever
Protect type front side: IP 65
Protect type back side: IP 20
