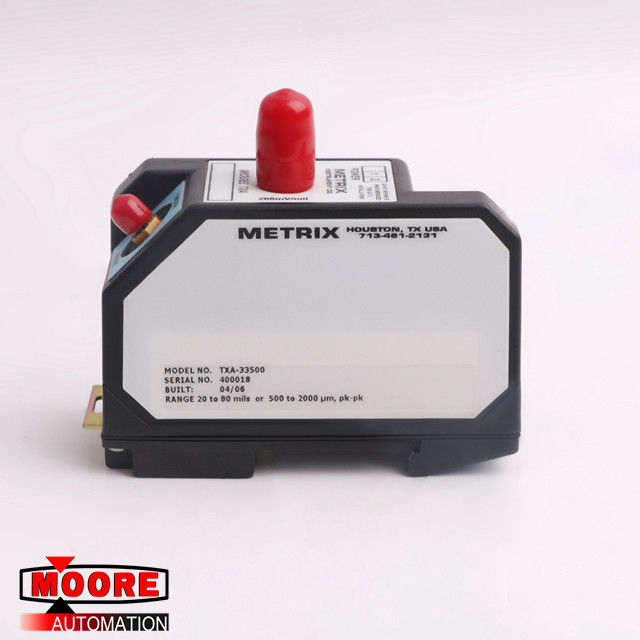

TXA-33500 METRIX RPM TRANSMITTER RANGE 20 TO 80 MILS
| Brand/Manufacturer |
METRIX/USA |
| Part Number |
TXA-33500
|
| Alternate Part Number |
TXA-33500
|
| Description |
RPM TRANSMITTER RANGE 20 TO 80 MILS |
| Dimennsions |
9.5cm x 4.0cm x 8.3cm |
| Weight |
0.26 kg |
Product Details
The TXR/TXA series of transmitters consists of two systems, the TXR, Radial Vibration Transmitter System and the TXA, Thrust Transmitter System. Both systems contain three parts – a proximity probe, a matched extension cable and a transmitter. Both systems provide a 4 to 20 mA current loop output signal.
The TXR Vibration Transmitter System measures the radial vibration of a shaft or other part of a machine in relation to the location of the probe tip.
FEATURES:
Cost effective alternative to dedicated rack mount monitors
Loop-powered driver/transmitter
Compatible with 4 major probe systems
Easily factory calibrated to non-standard shaft material
DIN Rail mounting (flat mounting base available) (P/N 9647)
BNC for access to dynamic output and probe gap
PBT plastic material
SPECIFICATIONS
Operating Humidity Range: 95% non-condensing, external environmental protection is required
Power Requirements:
17 to 30 VDC with a maximum start up current of 23 mA (-40°C to 85°C)
Max. loop resistance is determined by RL = 50 (Vs -17)ohms
Frequency Response:
5 Hz to 5 kHz +0, -3 dB pk-pk vibration
0 Hz to 20 Hz +0, -3 dB position
Linear Range:
0.5 to 2.0 mm (20 to 80 mils); (8mm probe)
0.5 to 4.0 mm (20 to 160 mils); (11 mm probe)
Supply Voltage: 17 to 30 VDC
Maximum Loop Resistance: RL = 50(Vs-17) ohms
Terminal Block:
Two piece, removable terminal block, for ease of installation
Accepts 16 to 28 AWG wire
