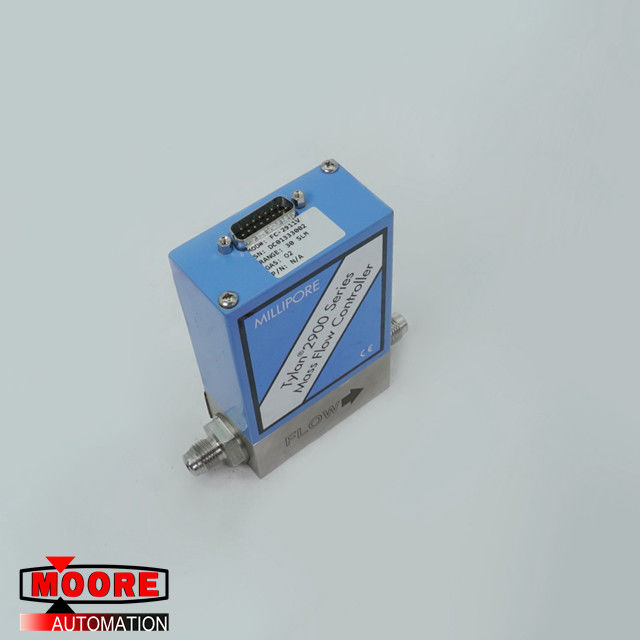

FC-2911V H2 30SLM DC01333002 MILLIPORE TYLAN Mass Flow Controller
| Brand/Manufacturer |
MILLIPORE TYLAN/USA |
| Part Number |
FC-2911V H2 30SLM DC01333002
|
| Alternate Part Number |
FC-2911V
|
| Description |
Mass Flow Controller |
| Dimennsions |
2.5cm x 13.4cm x 15.2cm |
| Weight |
0.35 kg |
Product Details
Features
Thermal gas flow sensor
Superior bypass design to operate under laminar flow conditions
Solenoid control valve
Auto Zero circuitry
Standard design
Benefits
Can be mounted in any position without requiring zero adjustment.
Assures accuracy over the entire range of mass flow control.
Easily removed for range changes.
Completely compatible with reactive and corrosive materials.
Automatically resets output to zero under no flow conditions, and shifts the entire calibration curve to cancel many effects of temperature coefficients and calibration drift.
Industry standards pinouts and dimensions made the Tylan FC2920 easy to install in many systems.
Performance Full Scale (N2 equivalent): 30 - 200 slpm
Turndown Ratio: 25:1
Step Response Time: 30-100 slm, 3 seconds (dependent on step response and conditions) 100-200 slm, 6 seconds (dependent on step response and conditions)
Accuracy: ± 2%full scale
Linearity: ± 0.5% full scale
Repeatability: ± 0.2% full scale
Reproduceability: ± 0.3% full scale per 10 weeks
Pressure Coefficient: 0.00001% per bar, 0.007% per psi (typical)
Temperature Coefficient: 0.05% per °C (zero and span)
Attitude Sensitivity: < 0.25% @ 90° C without autozero
Electrical
Power Supply Sensitivity: < 0.01% per volt
Power Consumption: 5.5 watts @ 15 VDC
Supply Voltage: ± 15 VDC nominal ± 20%
Input/Output Signal: 0-5 VDC
Supply Current: 170mA max. (200 mA max @ ±18 VDC)
Input Impedance: 500K ohms (minimum)
Minimum Load Impedance: 2000 ohms
Option (FC2921/ FM3921): 4 - 20 mA DC
Supply Current: 190 mA (220 mA @ 18 VDC)
Input Impedance: 250 ohms
Maximum Load Impedance: 250 ohms
Auto Zero
Delay Time: 80 ± seconds
Correction Time: < 2.5 seconds
Our Service
100% full New - Original Factory Seal
Warranty: 12 months
Package: Original packing with cartons
Delivery time: Shipped in 3 days after payment
