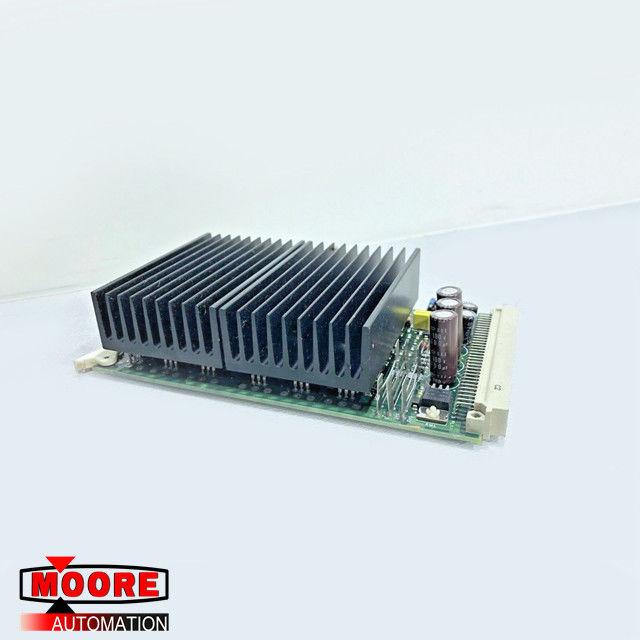

60X7/14 MINI MAESTRO Control Techniques DC Servo Drive

60X7/14 MINI MAESTRO Control Techniques DC Servo Drive

Product Details

Technical data

Analog speed reference input: ±10V (33kΩ input impedance)

Analog current reference input: ±10V 22kΩ (TPRC)

Enable signal: Minimum 10V, Maximum 30V, 20kΩ input impedance

Error amplifier temperature drift: ±25 µV / °C

Error amplifier offset: Offset at 25°C ±100µV

Tachogenerator feedback control range: 1 to 5000 RPM

Minimum tachogenerator signal at maximum: speed 5V

Armature feedback control range: 150 ~ 3000 RPM

Ambient temperature: Operating temperature range –10°C (50°F) to +45°C (113°F)

DC supply:

Battery: Minimum 24V, Maximum 72V

Nominal: 60V

Rectified AC supply: Minimum 20V, Maximum 80V, Maximum ripple 2V peak to peak

Reference voltages: ±10V 3mA maximum

Monitor motor current: ±8V

Monitor motor requested current (TPRC): ±10V

Power cables: 2.5 mm2 (AWG 14) for DCD60x10/20 and DCD60x14/28 models, 1.5 mm2 (AWG 16) for DCD60x3/6 and DCD60x7/14 models

Signal wiring: 0.5mm2(AWG 20)

Current tolerance: ±10%

Protection: Overtemperature on heatsink 100°C, Undervoltage 20V, Overvoltage 80V
