LE4-116-XD1 LE4116XD1 MOELLER Digital Expansion Module-16 Digital Outputs

LE4-116-XD1 LE4116XD1 MOELLER Digital Expansion Module-16 Digital Outputs

Product Details

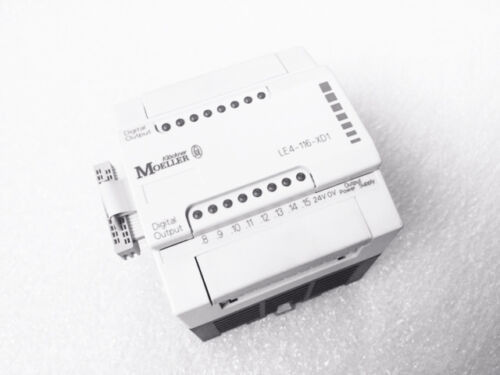

The LE 4-116-XD1 is a local expansion module 16 digital outputs.

Technical data

General

Standards, regulations: EN 61 131-2, EN 50 178

Ambient temperature: 0 to 55 °C

Storage temperature:–25 to +70 °C

Vibration resistance: Constant 1 g/0 to 150 Hz

Shock resistance: 15 g/11 ms

Terminals: Plug-in screw terminal

Terminal cross-section:

Flexible with ferrule: 0.22 to 1.5 mm2 (AWG 23 to 16)

Solid: 0.22 to 2.5 mm2 (AWG 23 to 13)

Outputs

Number of outputs: 16

Voltage supply of outputs

Rated voltage Ue: 24 V DC

Permissible range: 20.4 to 28.8 V DC

Reverse polarity protection: Yes

Max. supply current: 130 mA

Electrical isolation: in 2 groups of 8 outputs each

Rated current For signal "1": 0.5 A at 24 V DC

Utilization factor g: 1

Relative duty factor DF: 100 %

Interrupting voltage limit for inductive loads: Yes
