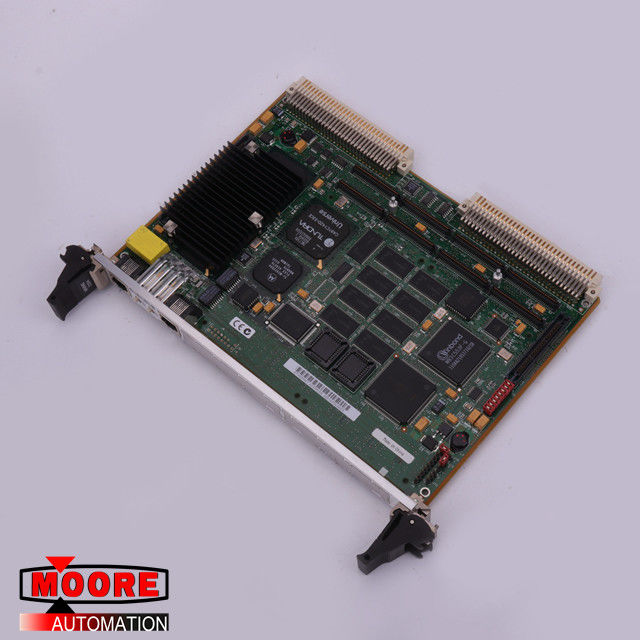

MVME2304 64-W5206C01B MOTOROLA VME Processor Module 128MB 200MHz MPC603

MVME2304 64-W5206C01B MOTOROLA VME Processor Module 128MB 200MHz MPC603

Product Details

Features

MPC60x 32-Bit Microprocessors

Two 32/64-Bit PMC Expansion Slots with Front-Panel and P2 I/O

64-bit PCI Expansion Mezzanine Connector

Asynchronous Serial Debug Port

Four 32-Bit Timers, One 16-Bit Timer, One Watchdog Timer

10/100Mb/s Ethernet Transceiver Interface

Specifications

Memory:

DRAM: 32MB or 64MB, ECC-protected

Flash: 1MB via two 32-pin PLCC sockets, 4MB via surface mount

TOD clock device: 8KB NVRAM

Timers: One watchdog timer; time-out generates reset, Four real-time 16-bit programmable timers

Power requirements, with no PMCs installed: +5Vdc (±5%), 4.5A typical, 5.5A maximum

with MP604

Operating temperature: 0°C to 55°C entry air with forced-air cooling (refer to Cooling Requirements section)

Storage temperature:: –40°C to +85° C

Relative humidity: 10% to 80%

Vibration (operating): 2 Gs RMS, 20Hz-2000Hz random

Altitude (operating): 5000 meters (16,405 feet)

PCI Mezzanine Card (PMC) slots:

Address/Data: A32/D32/D64, PMC PN1-4 connectors

Bus Clock: 33MHz

Signaling: 5V

Power: 7.5 watts maximum per slot (see Note)

Module types: Basic, single-wide (74.0 mm x 149.0 mm) Basic, double-wide, (149.0 mm x 149.0 mm)

PMC I/O: Front panel and/or VMEbus P2 I/O; P2 pinout accommodates access to SCSA backplane bus

PCI expansion connector:

Address/Data: A32/D32/D46, 114-pin connector

PCI bus clock: 33 MHz

Signaling: 5V

Peripheral Component Interconnect (PCI): PCI bridge; PCIbus, 32-/64-bit, 33MHz
