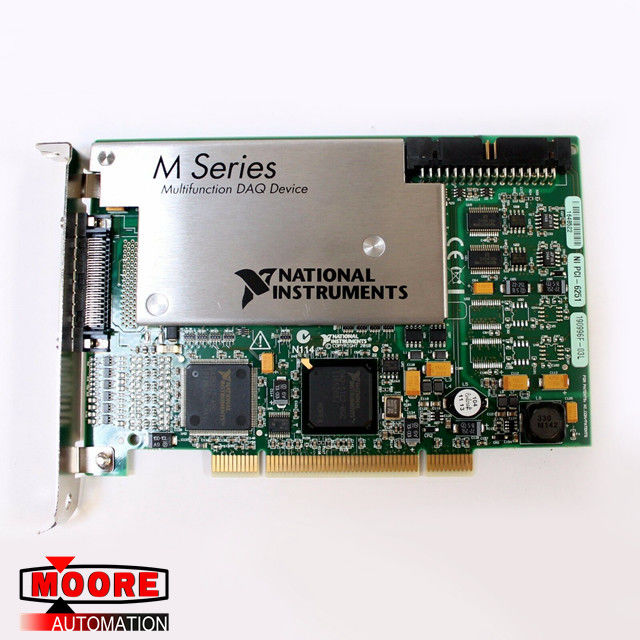

NI 6251 M-Series Multifunction DAQ Device
| Brand/Manufacturer |
NI /CHINA |
| Part Number |
6251
|
| Alternate Part Number |
6251
|
| Description |
M-Series Multifunction DAQ Device |
| Dimennsions |
17.9cm x 11.2cm x 3.5cm |
| Weight |
0.35kg |
Product Details
Analog Input
Number of channels: 8 differential or 16 single ended
ADC resolution: 16 bits
DNL: No missing codes guaranteed
Sample rate:
Single channel maximum 1.25 MS/s;
Multichannel maximum (aggregate) 1.00 MS/s;
Minimum No minimum;
Timing resolution: 50 ns
Timing accuracy: 50 ppm of sample rate
Input coupling: DC
Input range: ±0.1 V, ±0.2 V, ±0.5 V, ±1 V, ±2 V, ±5 V, ±10 V
Maximum working voltage for analog inputs (signal + common mode): ±11 V of AI GND
CMRR (DC to 60 Hz): 100 dB
Analog Output
Number of channels: 2
DAC resolution: 16 bits
DNL: ±1 LSB
Monotonicity: 16 bit guaranteed
Maximum update rate:
1 channel 2.86 MS/s;
2 channels 2.00 MS/s per channel.
Timing accuracy: 50 ppm of sample rate
Timing resolution: 50 ns
Output range: ±5 V, ±10 V, ±external reference on APFI 0
Output coupling: DC
Output impedance: 0.2 Ω
Output current drive: ±5 mA
Overdrive protection: ±25 V
Overdrive current: 20 mA
Power-on state: ±5 mV1
Power-on glitch: 1.5 V peak for 1.5 s
Output FIFO size: 8,191 samples shared among channels used
Analog Triggers
Number of triggers: 1
Source: AI <0..15>, APFI 0
Functions: Start Trigger, Reference Trigger, Pause Trigger, Sample Clock, Convert Clock, Sample Clock Timebase
Source level: AI <0..15> ±Full scale; APFI 0 ±10 V
Resolution: 10 bits, 1 in 1,024
Modes: Analog edge triggering, analog edge triggering with hysteresis, and analog window triggering
