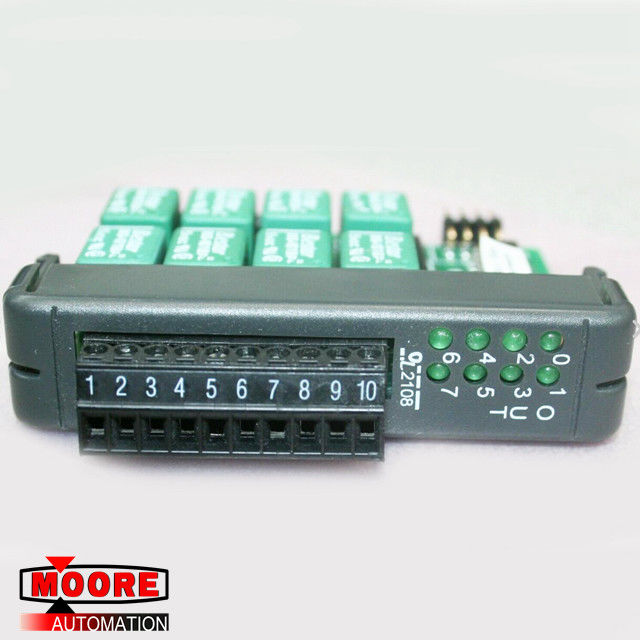

OL2108 OPTILOGTC 8 Channel Relay Output Module
| Brand/Manufacturer |
OPTILOGTC/USA |
| Part Number |
OL2108
|
| Alternate Part Number |
OL2108
|
| Description |
8 Channel Relay Output Module |
| Dimennsions |
2.2cm x 5.7cm x 7.5cm |
| Weight |
0.12kg |
Product Details
Digital outputs are used to turn loads on and off. ìLoadsî may be lights, motors, solenoids, or any type of on/off device found in the real world.
Digital outputs in the OptiLogic series come in three types - relay, transistor and solid state relay. Each type has applications it is best suited for. The following is a general list of application characteristics for each output type.
Relay:
Low contact loss; AC or DC; Moderate to high current rating
ï Low cost Should not be used for:
Ultra low current switching (less than 10mA)
Switching loads at high frequency
Transistor: DC application only; Low current rating; High frequency switching; Low cost
Solid State Relay: AC application; Any switching frequency; Moderate current ï Moderate cost
Outputs: 8
Output type: Mechanical relay
Contact voltage rating: 0 - 24 VDC; 0 - 120 VAC
Contact rating: 1A (resistive)/point; @24 VDC, 1A/point; @120 VAC, 1A/point
Contact type: Form A (SPST)
Minimum load: 10 mA
Contact arrangement: 4 relays per common
Mechanical life: 10,000,000 operations per relay (at no load)
Electrical life: 100,000 operations per
Card Cage Power required: 375 mA
Contact resistance: 0.1 ohm (initial)
Terminal Strip: Plug In (removable)
Maximum Terminal Wire Gauge: 18 AWG (use copper conductors)
