| Place of Origin | USA |
| Brand Name | OPTILOGTC |
| Certification | CO.CQ |
| Model Number | OL2109 |

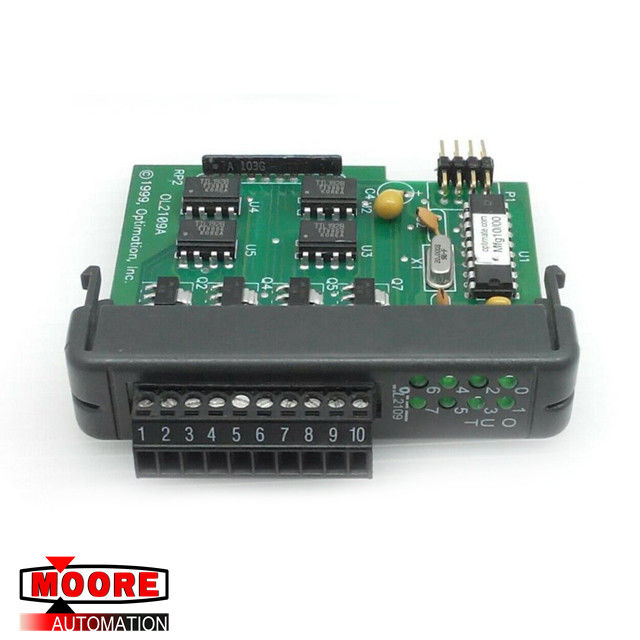

OL2109 OPTILOGTC DC Sinking Output Module
| Brand/Manufacturer | OPTILOGTC/USA |
| Part Number |
OL2109 |
| Alternate Part Number |
OL2109 |
| Description | DC Sinking Output Module |
| Dimennsions | 2.0cm x 5.7cm x 7.5cm |
| Weight | 0.11kg |
Product Details
The OL2109 Transistor Output module provides eight optically isolated transistor outputs which can be used for switching small DC loads. Individual LED indicators provide visual feedback of output state.
Outputs: 8
Output Type: NPN open collector transistor
Card Cage Power required: 140 mA
Status indicators: Logic side LED
Voltage Rating: 0 - 40VDC
Peak Voltage: 80VDC
On voltage drop: .75V @ 100mA; .95V @ 300mA
Terminal strip: Plug In (removable)
Commons: 2 (connected internally)
Terminal screw: Slotted (0.1î blade max)
Maximum continuous load current: 300 mA
Maximum terminal wire gauge: 18 AWG (use copper conductors)
Maximum surge current: 1.0A for 5 seconds
Required Temperature rating of field installed conductors: 60℃/75℃
Terminal block torque: 2.2 lb-in
Type: 9
Subtype: 2
