| Place of Origin | USA |
| Brand Name | OPTO 22 |
| Certification | CO.CQ |
| Model Number | 001818K AC24AT |

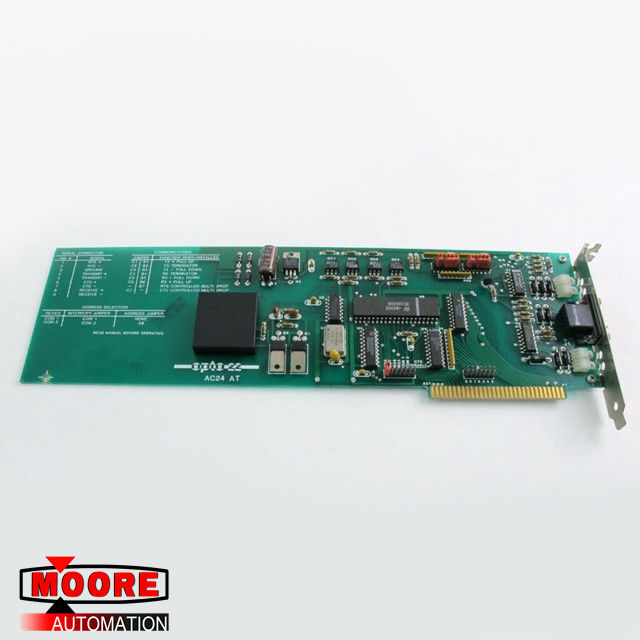

OPTO 22 001818K AC24AT Adapter Card Interface 250mA 5VDC 150mA
| Brand/Manufacturer | OPTO 22/USA |
| Part Number |
001818K AC24AT |
| Alternate Part Number |
AC24AT |
| Description | Adapter Card Interface 250mA 5VDC 150mA |
| Dimennsions | 34.1cm x 12.3cm x 3.5cm |
| Weight | 0.46kg |
Product Details
The AC24AT and AC422AT cards provide an asynchronous RS-422/485 communications port for the ISA bus. The adapter cards are seen by the computer as standard COM ports.
These cards are transient protected, feature bi-directional handshake lines for RTS and CTS, and can drive up to 32 devices on a multi-drop network. They are designed for communicating to Optomux brain boards in RS-422/485 4-wire mode and support baud rates up to 115.2 kbaud.
In addition, the AC24AT card provides 4,000 volts of isolation between the ISA bus and the communications link. The AC24AT card can also be set up for RS-485 2-wire mode; however, special software drivers are required to take advantage of this. These special software drivers are not provided by Opto 22. For 2-wire RS-485 solutions, use Opto 22's AC37 (ISA bus adapter) or AC7A (stand-aloneRS-232 to RS-422/485 converter)
Features
The adapter card uses the standard 16550 UART and appears as a standard COM port
Transient protection for RS-422/485 lines
Multi-drop capability
RS-422/485 balanced line drivers
Up to 5,000 feet of cable length using shielded twisted-pair cable
Data rates from 300 baud to 115.2 kbaud
Bi-directional handshake lines (RTS, CTS)
LED indicators for Transmit, Receive, RTS, and CTS
Jumper-configurable termination and biasing for RS-422/485 lines
Model AC24AT provides 4,000 volts of optical isolation between the computer
Model AC24AT provides transformer isolation between the computer's 5 VDCAC24AT/AC422AT User's Guideto the computer and the RS-422/485 lines and the RS-422/485 lines
Specifications
Baud Rate: 38400 Baud
Contact Rating: 250 mA @ 5 VDC, 150 mA @ ± 12 VDC
For Use With: Computer
Indicator: Transmit, Receive, RTS, and CTS
Interface: RS-422/485 (9-Pin, D-Shell Female Connector)
Isolation Voltage: 4000 VAC
Operating Temperature: 0 to 60 °C
Series: AC Series
Type: ISA
