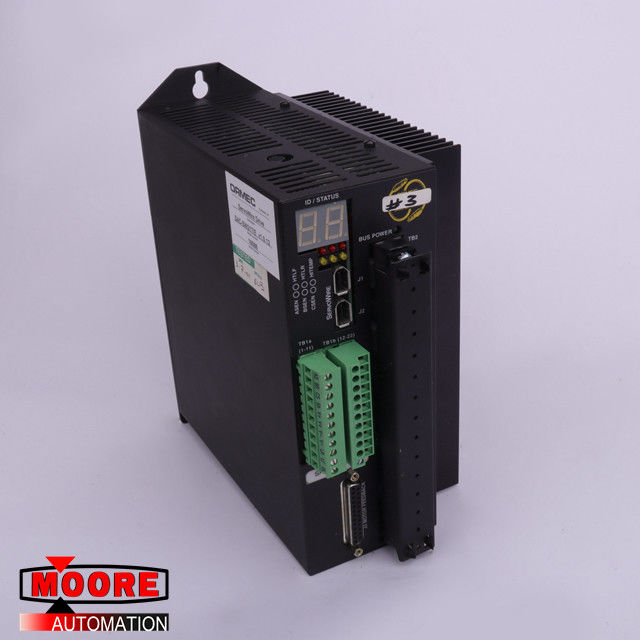

SAC-SW217/EP SAC-SW217/E ORMEC Servo ServoWire Drive

SAC-SW217/EP SAC-SW217/E ORMEC Servo ServoWire Drive

Product Details

Features

5 Models from 2.4 to 60 amps

Models Range from 600 to 15,000 Watts

IEEE 1394a ServoWire (FireWire) digital network

Input Power - 115 or 230 VAC

DSP Technology with band width at 1200 Hz

I/O on Board for high speed interface

All-Digital Design - eliminates all manual drive setup

Small Footprint - high power density, reduces space requirements

Sinusoidal Commutation - improves low speed torque ripple

Trapezoidal Commutation - provide user flexibility

UL/CE marked

Status Indicators -- Large two-digit display for network ID and drive status plus six LED indicators that show condition of sensors, travel limits and motor over-temperature.

ServoWire Network Interface -- Two connectors provide all digital control link to ServoWire Drive Network. Network interface is galvanically isolated from the drive and powered by the ServoWire Axis Module.

Drive Power Inputs -- Universal voltage input power accepts 90 VAC to 265 VAC featuring separate logic and bus power supplies with overvoltage protection.

Flexible Drive I/O -- ServoWire Drive provides three high speed sensor inputs, up to six optically isolated programmable limit switch (PLS) outputs--(one of the PLSs can be used as a user-configurable fail-safe brake control output), two overtravel limit switch inputs, plus two high quality analog outputs for monitoring motor velocity and torque. Convenient screw terminal plugable connectors.

External Regen & Bus Connections -- Allows bus power to be shared between drives and/or the addition of an external resistor for dissipating regenerative energy from the system. (All models except SAC-SW203 & SW205).

Brushless Motor Feedback Interface -- Versatile encoder feedback interface accommodates differential or single-ended hall tracks, quadrature feedback, and optionally support the multi-revolution, absolute encoders available on ORMEC D-Series motors.

Auxiliary Encoder Input Option -- Provides an additional connector for a pacer encoder when applications require addition positioning information for web control applications. Used for distributed feedback applications.

FAQ

1.Q: Does your goods are new and original?

A: yes,they are new and original.

2.Q: Could Moore provide technology support?

A: Were in this field more than 12 years with a professional technical team to serve our customers.

3.Q:Dose Moore keeps goods in stock?

A: We have large warehouse for goods,keep lots of goods in warehouse,so could promise fast delivery.

4.Q:Can you provider discount?

A: Yes,we are glad to offer you discount if you order more piece.

5.Q: What about your lead time?

A: We hanve many items in stock,3-5 days you will receive it.

6.Q: Dose Moore test the products before shipping?

A: Yes,we have professional technology staff to test the goods before.
