| Place of Origin: | USA |
| Brand Name: | ROSEMOUNT |
| Certification: | CO.CQ |
| Model Number: | 1055-01-10-20-30 |

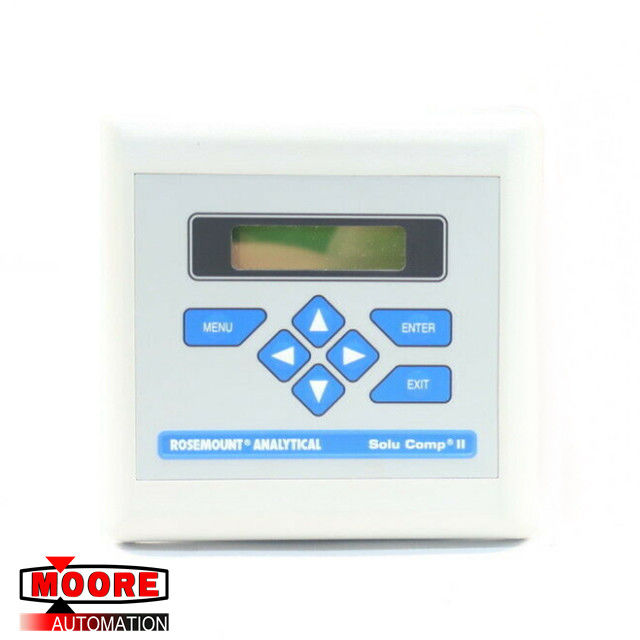

1055-01-10-20-30 ROSEMOUNT Solu Comp Ii Conductivity Analyzer 15/23 VAC 50/60Hz
| Brand/Manufacturer | RELIANCE/USA |
| Part Number |
1055-01-10-20-30 |
| Alternate Part Number |
1055-01-10-20-30 |
| Description | Solu Comp Ii Conductivity Analyzer |
| Dimennsions | 15.8cm x 15.8cm x 8.2cm |
| Weight | 1.1kg |
Product Details
The Solu Comp II analyzers offer the choice of single or dual sensor input with measurement choices of pH/ORP, resistivity/conductivity/TDS, % concentration, ratio conductivity, total and free chlorine, dissolved oxygen, dissolved ozone, flow and temperature. Dual measurement analyzers offer a wide choice of measurement combinations thus reducing the cost per loop and needed panel space.
Field Commission Option:
The Solu Comp II can be ordered with the ability to commission measurements in the field. This added flexibility can greatly reduce the number of spare instruments required for field servicing.
Features:
Broad selection of measurement choices include pH/ORP, Resistivity/Conductivity, % Concentration, Total and Free Chlorine, Dissolved Oxygen, Dissolved Ozone, Flow, and Temperature.
Single or dual measurement with dual 4-20 mA outputs.
Full complement of measurement combinations can be commissioned in the field.
Three fully programmable alarms.
Clear, easy-to-read, two-line back-lit display easily customized to read in English, French, German, Italian, Spanish, or Portuguese.
Choice of enclosures for pipe, surface, and panel mounting meet NEMA 4X/CSA 4 (IP 65) requirements.
SPECIFICATIONS
Case: ABS (panel-mount), polycarbonate (pipe- and surface-mount). All versions are NEMA 4X/CSA 4 (IP65)
Conduit openings: Accepts PG13.5 or 1/2 in. conduit fittings
Display: Two line, 16-character, back-lit display. Character height: 4.8 mm. Display can be customized to meet individual requirements. Depending on number of sensors, as many as 14
display screens are available.
Ambient temperature and humidity: 0 to 50°C, (32 to 122°F) RH 5 to 95% (non-condensing) Note: The analyzer is operable from -20 to 60°C (-4 to 140°F) with some degradation in display performance.
Power:
Code -01: 115/230 Vac ±15%, 50/60 Hz ±6%, 8.0W
Code -02: 24 Vdc ±15%, 6.0W
Installation Category II
