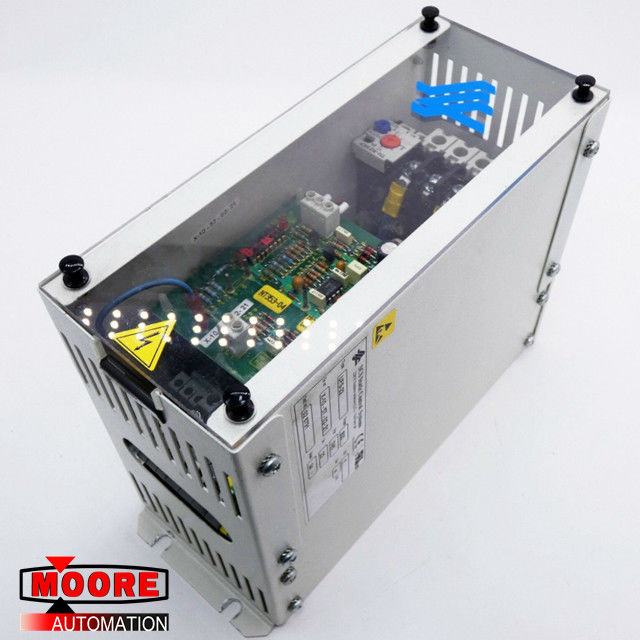

SCS UFS-22 Static Control System Rated current 22

SCS UFS-22 Static Control System

Product Details

GENERAL DESCRIPTION

The UFS braking units are designed to be used with any frequency inverter or converter equipped with BUS-DC. These units can dissipate, through a static chopper, the energy coming from the load during the braking phase. The product family has UL Certification for NAFTA market use.

MAIN FEATURES

User selectable braking threshold

Self powered from DC-BUS

Master-Slave functionality

Internal electro-mechanical thermal relay with insulated auxiliary

contacts for braking resistor protection.

Starndar kits of braking resistors

Braking voltage Standard (SW1-4 = ON): 745

Maximum peak current IP (A):34

Maximum instantaneous power Pmax (KW): 25

Standard Ith (A):7÷11

RF(Ω) min.: >22

TECHNICAL SPECIFICATIONS

Tolerance on the intervention voltage: 0.8%

Hysteresis about 2%

Ambient temperature 0°C ÷ 40°C

Maximum braking time = 10s

Protection degree IP20

Thermal guard with manual / automatic reset

DC supply voltage from 450Vdc to 746Vdc (234Vdc÷373dc for J version)

Maximum voltage 800Vdc (400Vdc for J version)

Main supply voltage from 380Vac to 480Vac +/-10%. (200Vac to 240Vac ±10% for J version)
