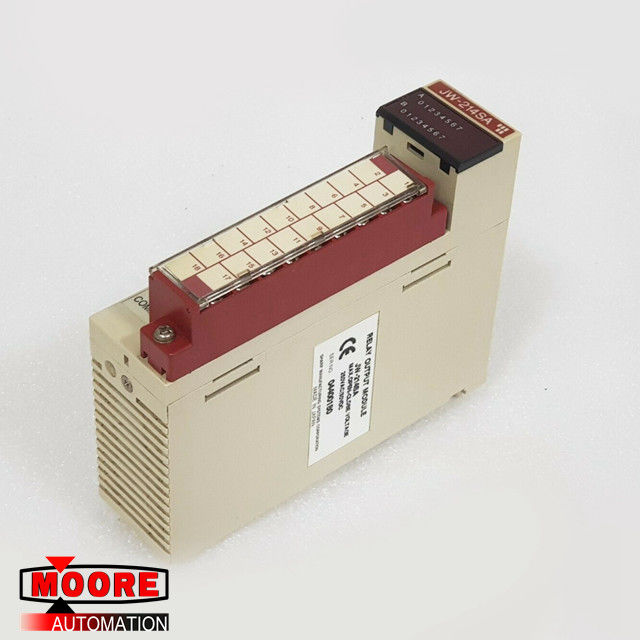

SHARP JW-214SA RELAY OUTPUT MODULE

SHARP JW-214SA RELAY OUTPUT MODULE

Product Details

Specifications

No. of occupancy I/O points

I/O relay: 16 points (dummy)

Relay for special module : 128 points (16 bytes)

Parameter: 128 bytes

Register: 256 bytes x 4

No. of control axes: One axis

Output form: 1. CW + CCW two pulse method, 2. Singed pulse method

Positioning coordinate setting: 99 points, max.

Positioning speed setting: 8 stages, max.

Instruction method: Absolute value/relative value

Position set module: Pulse, mm, deg

Max. Passing: -16,777,215 to +16,777,215 (pulse)

Max. Speed: 250 kpps

Max. Acceleration: 3,000 pps/ms

Control system: 1. Position control, 2. Speed control, 3. Speed -> Position control (Positioning halt by external sensor input)

Operation mode: 1. Coordinate number selection positioning, 2. Program positioning, 3. Jog operation, 4. Home position

Auxiliary output: 3 points, set range between 0 and +/- 16,777,215 (pulse)
