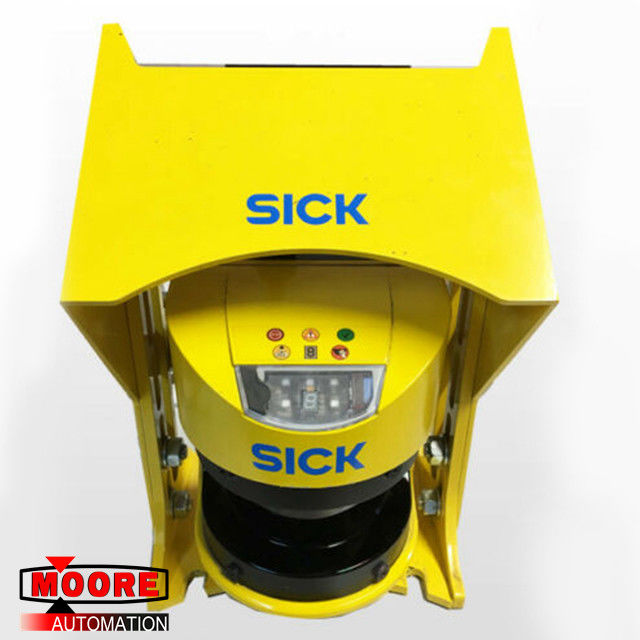

S30A-6011BA SICK Professional Laser Scanner

S30A-6011BA SICK Professional Laser Scanner

Product Details

Features

Protective field range: 5.5 m

Warning field range: 49 m (20 m at 20 % reflectivity)

Distance measuring range: 49 m

Number of simultaneously monitored protective fields: ≤ 4 1)

Type of field set: Triple field sets, dual field sets

Number of field sets: 1

Number of fields: 4 2)

Number of monitoring cases: 1

Scanning angle: 190°

Resolution (can be configured): 30 mm, 40 mm, 50 mm, 70 mm, 150 mm

Angular resolution: 0.5°, 0.25°, depending on range and resolution

Response time: 60 ms 3)

Protective field supplement: 100 mm

Number of multiple samplings: 2 ... 16, configurable

Delay of automatic reset: 2 s ... 60 s, configurable

Electrical data

Protection class: II (EN 50178)

Supply voltage Vs: 24 V DC (16.8 V DC ... 28.8 V DC)

Power consumption: ≤ 0.8 A 1); ≤ 2.3 A 2)

Outputs:

Output signal switching devices (OSSDs) 2 x 500 mA

Application diagnostic outputs 3 x 100 mA 3)

Ambient data

Enclosure rating: IP65 (EN 60529)

Ambient operating temperature: –10 °C ... +50 °C

Storage temperature: –25 °C ... +50 °C

Vibration resistance: 5 g, 10 Hz ... 150 Hz (IEC 61496) IEC 61496-3

Shock resistance: Continuous shock 10 g, 16 ms (IEC 61496)
