| Place of Origin | GERMANY |
| Brand Name | TOX PRESSOTECHNIK |
| Certification | CO.CQ |
| Model Number | 0610520IF120245B |

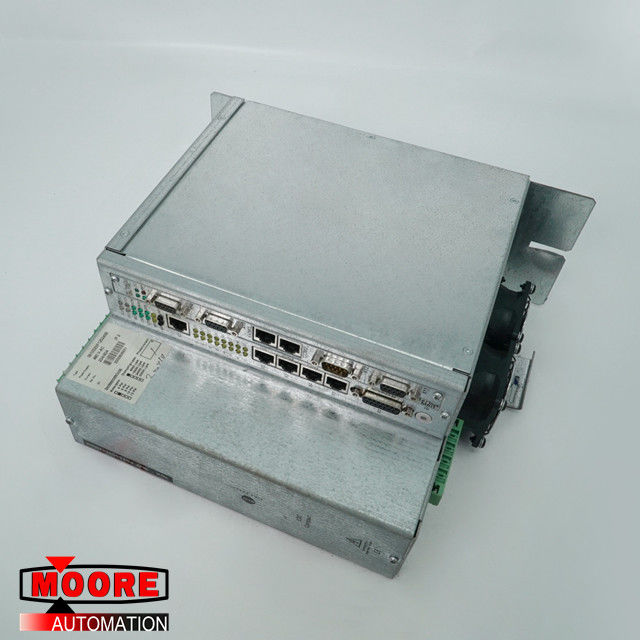

0610520IF120245B TOX PRESSOTECHNIK Power Drive
| Brand/Manufacturer | TOX PRESSOTECHNIK/GERMANY |
| Part Number |
0610520IF120245B |
| Alternate Part Number |
0610520IF120245B |
| Description | Power Drive |
| Dimennsions | 21.0cm x 18.5cm x 12.3cm |
| Weight | 1.5kg |
Product Details
Features
Real-time monitoring of production processes
Provides important data about process sequence
Special monitoring by using window technique and envelopes
Individual measuring programs can be selected
User interface language can be switched
Backup of measurement data and final values
Various password levels
Colour touchscreen
Technical data
Application: Monitoring of pressing processes
Supply voltage: 24VDC
Current consumption: ≤ 1 A
Inputs / Outputs: - Digital: 16 inputs / 8 outputs; - Analogue: 2 outputs
Number of measuring programs: 64
Interfaces connections: Ethernet, USB, Digital In/Out
Fieldbus interfaces: Ethernet, PROFIBUS DP, PROFINET CU, DeviceNet, Ethernet IP, CANopen, PROFINET LWL, EtherCA
Protection class: Built-in device IP54 front panel, IP20 housing, Wall mounted version IP54
Measuring channel resolution: 16 bit
Max. sampling rate: 2000Hz
About TOX PRESSOTECHNIK
TOX PRESSOTECHNIK offers innovative products and services for the sheet metal joining industry including press drives, presses and special machinery. Take advantage of our engineering expertise, a wide range of standard products and the best solution for your application.
TOX PRESSOTECHNIK was founded in 1978 by Eugen Rapp. As a global supplier of presses and components for the sheet metal joining industry, this family-owned business now has over 1,400 employees worldwide.
We started by introducing powerful drives for production machinery including the TOX Powerpackage. We also offer the TOX-ElectricDrive program, which is an alternative high-tech solution. Our machinery offers endless possibilities for product development within the sheet metal joining industry. For over 40 years, we have supplied the industry with drives, presses and other tools for clinching, punching, inserting and riveting. The automotive industry also relies heavily on our products.
