MD01R-02 0042 UNIOP Operator Interface Panel

MD01R-02 0042 UNIOP Operator Interface Panel

Product Details

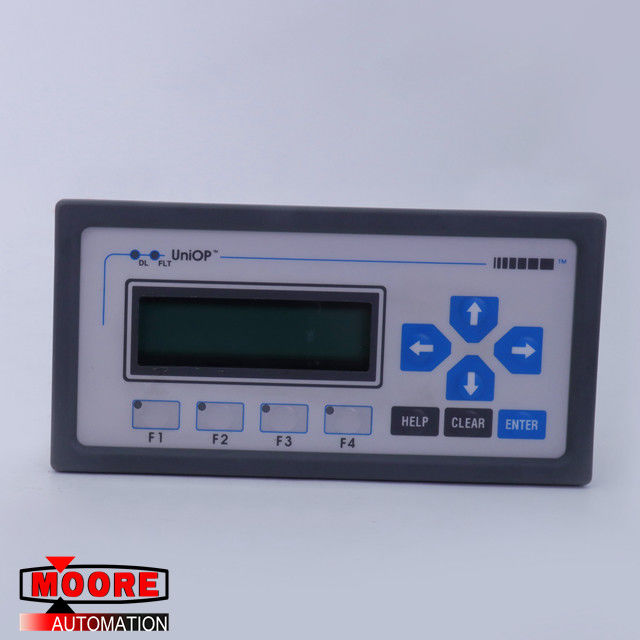

The MD01R-02, MD03R-02 and MD03R-04 fulfill the need for a powerful yet cost effective operator interface system in areas where space and cost must be small. Displays are available with either a two line or four line backlit LCD display. Each line can contain up to 20 characters. Each page can contain up to 32 lines, which can be accessed by scrolling with the arrow keys. Brightness control is provided to adjust the display for easy viewing under nearly any condition.

Display Variables

PLC internal variables can be shown on any of the many display pages (limited only by memory size). The number of variables that can be viewed at one time is limited only by the display size. UniOP also provides scaling (linear conversion) of the displayed data. The final value can then be shown in several useful formats including decimal, bit, hexadecimal, floating point, and string. Data entry with valid range verification is also available for each data type.

Data Entry

The integral keypad on the MD01R-02 offers 11 programmable keys and 4 user LEDs to the display panel. The integral keypads on the MD03R-02 and MD03R-04 offer 19 configurable keys and 9 user LEDs to the display panel. Slide-in legends make it easy to customize and document the operation of the keys and user LEDs. Data entry can be achieved with the up and down arrow keys on the MD01R-02 or by using the numeric keypad on the MD03R-02 and the MD03R-04.

Features:

NEMA 4/12 compliant enclosure;

CE approved;

Keyboard Macro Editor;

One RS-232 / RS-422 / RS-485 / 20mA current loop serial port, speeds up to 38,400 baud for direct PLC connection and PC communication;

One auxiliary port for high speed bus network communications;

Configurable function keys with LEDs and slide in legends;

Cursor, Clear, and Enter keys;

128 KB internal memory standard Flash EPROM;

Unlimited number of variables per page;

256 prioritized alarms;

Eight-level password protection;

Displays ASCII standard character set;

Small size for tight space requirements .

Specifications

Environment:

Operating Temperature: 0 to 50 °C (32 to 122 °F)

Humidity: 0 to 95% RH (non-condensing)

Power Requirements: 250 mA maximum, 24 VDC

Display:

Type: Liquid Crystal

Size: 2 or 4 lines x 20 characters/line

Character Height: 5.15 mm (13/64 inch)

Keypad:

Technology: Tactile Feedback (tested 5M times)
