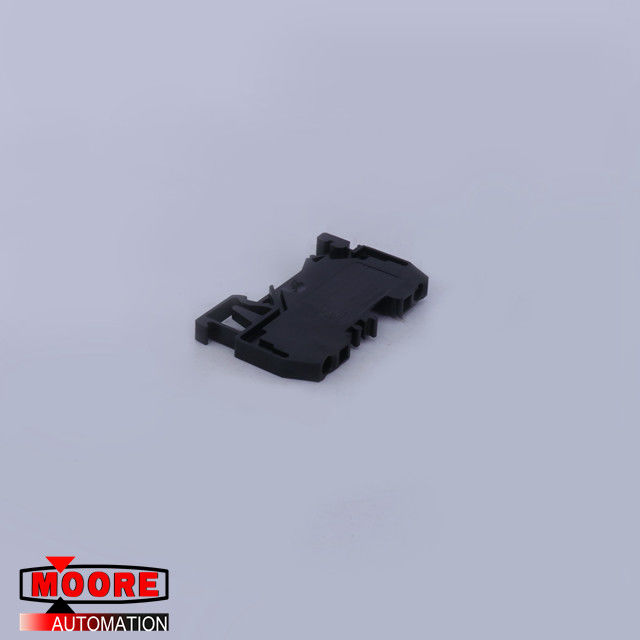

WAGO 280-905 2-Conductor through terminal block

WAGO 280-905 2-Conductor through terminal block

Product Details

2-conductor through terminal block; 2.5 mm²; center marking; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP®; 2,50 mm²; black

Electrical data

Ratings per IEC/EN 60664-1

Ratings per: IEC/EN 60947-7-1

Rated voltage (III / 3): 800 V

Rated surge voltage (III/3): 8 kV

Rated current: 24 A

Connection data

Connection technology: CAGE CLAMP

Actuation type: Operating tool

Connectable conductor materials: Copper

Solid conductor: 0,08 … 2,5 mm² / 28 … 12 AWG

Fine-stranded conductor: 0,08 … 2,5 mm² / 28 … 12 AWG

Strip length: 8 … 9 mm / 0.31 … 0.35 inch

Total number of connection points : 2

Total number of potentials: 1

Number of levels: 1

Wiring type: Side-entry wiring

Note (conductor cross-section): 12 AWG: THHN, THWN

Material Data

Color: black

Insulation material: Polyamide 66 (PA 66)

Fire load 0.107 MJ

Weight: 5.6 g

Mechanical data

Design: horizontal type

Mounting type: DIN-35 rail

Marking level: Center marking
