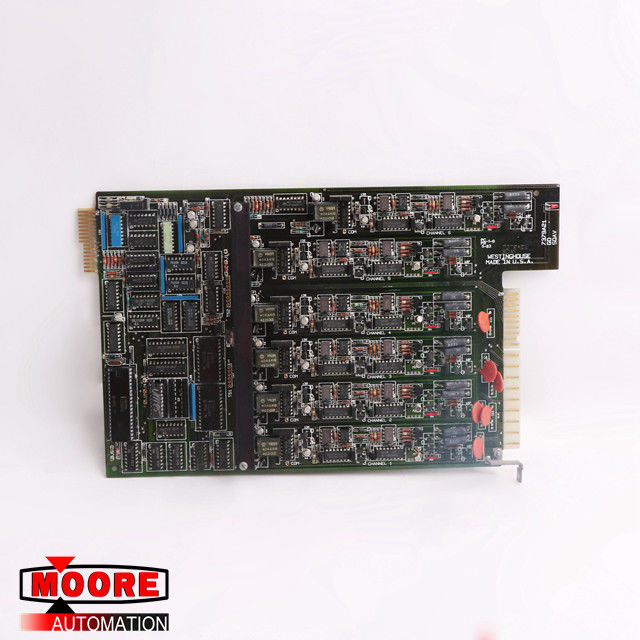

WESTINGHOUSE 7379A21G02 QAW Card

WESTINGHOUSE 7379A21G02 QAW Card

Product Details

Specifications

Number of inputs : 2 per MPC4 card

Triggering method : Crossing of thresholds on rising/falling edge of signal

Triggering thresholds : Rising = 2/3 of peak-peak value, falling = 1/3 of peak-peak value

Tacho range : 0.016 Hz to 50 kHz on input.

0.016 Hz to 1092 Hz (1 to 65535 RPM) after division by the

“wheel teeth number”.

Speed resolution : 0.001 Hz (internal)

Input voltage range : 0.4 to 500 Vpp in the range 0.3 Hz to 10 kHz.

2.0 to 500 Vpp in the range 10 kHz to 50 kHz.

Minimum input voltage for reliable detection

Square-wave input signal : 0.8 Vpp (0.016 Hz to 10 kHz). 2.0 Vpp (10 kHz to 50 kHz).

Sinusoidal input signal :

10 Vpp (0.016 Hz to 1 Hz).

2.0 Vpp (1 Hz to 10 Hz).

0.8 Vpp (10 Hz to 10 kHz).
