| Place of Origin | USA |
| Brand Name | WOODWARD |
| Certification | CO.CQ |
| Model Number | 5464-013 |

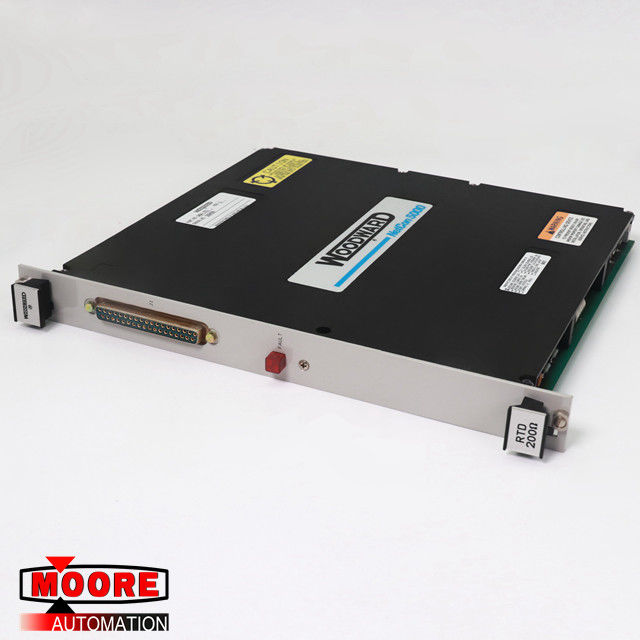

WOODWARD 5464-013 RTD 200Ω input module
| Brand/Manufacturer | WOODWARD/USA |
| Part Number |
5464-013 |
| Alternate Part Number |
5464-013 |
| Description | RTD 200Ω input module |
| Dimennsions | 16.4cm x 14.8cm x 3.5cm |
| Weight | 0.78kg |
Product Details
Features
2 engine speed inputs: camshaft and crankshaft speed (crank software configurable for variable reluctance [VR] magnetic pickup sensor or Hall effect proximity sensor inputs)
1 frequency input
Up to 14 analog inputs
4 switch inputs
Up 2 HEGO sensor inputs
1 UEGO sensor input (compatible with Bosch LSU4.9 or NTK sensors)
Up to 2 knock sensor inputs
1 transducer power output providing +5 V (350 mA)
Up to 6 injector drivers (3 capable of providing software configurable peak-and-hold current levels
Up to 8 ignition coil drivers
MPRD (Master Power Relay Driver) low-side output
9 low-side output drivers (up to 3 with current sense feedback)
Up to 3 lamp drivers
TACH low-side output
2 H-bridge driver outputs providing 10 A and 5 A drive capability and current-sense feedback
Optional 3-Phase BLDC driver
2 CAN (Controller Area Network) communications ports
16-kilobyte serial EEPROM for tunable parameter storage
About WOODWARD
Woodward technologies and services enhance energy conversion of renewable and fossil fuels, energy extraction and distribution, and electric power generation and distribution. Power generation OEMs throughout the world use Woodward engine management systems and genset controls, as well as our solar inverters and wind converters.
Our power management controls meet the diverse needs of the electrical power generation industry—from base load or process control, to peak shaving and emergency power or communications-intensive distributed power generation requirements. Through the ability to provide control over both the generator and the prime mover, our controls and systems help power generators deliver consistently reliable power and coordinate a variety of distributed resources. Backed by decades of experience with generator controls, load sharing, synchronization, and power protection technologies, Woodward's power generation control solutions set standards worldwide.
