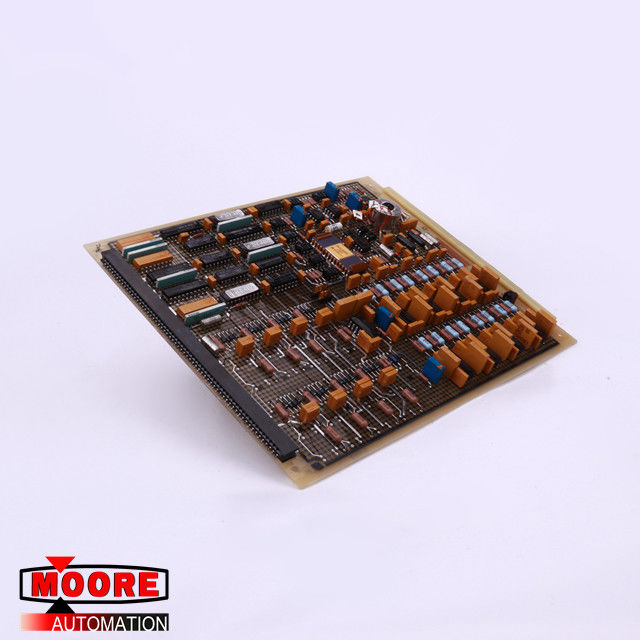

WOODWARD 5461-650 INPUT CONTACT BOARD

WOODWARD 5461-650 INPUT CONTACT BOARD

Product Details

I/O Expansion

(3) Analog Inputs -10 to +10V, 13 bit plus sign, 4 to 20mA

(16) Digital Inputs

(2) Analog Outputs (-10 to +10V, 11 bit magnitude)

(8) Digital Outputs (6 transistor, 2 relay)

Feedback (optional)

Incremental

Absolute (Stegmann, Heidenhain, Resolver)

Network Communication

Standard: Modbus RTU, RS-485, 115 kbps

Optional: EtherNet/IP, DeviceNet, Modbus TCP/IP, PROFINET, PROFIBUS-DP

Speed Control Range

1500:1 Closed Loop Vector (IM and PM Motors)

200:1 Open Loop Vector (IM Motors)

100:1 Open Loop Vector (PM Motors)

Speed Control Accuracy ≤ 0.02%: Closed Loop Vector; ≤ 0.2%: Open Loop Vector

Speed Response ≥ 50 Hz: Closed Loop Vector (Induction Motors); ≥ 250 Hz: Closed Loop Vector (PM Motors)

≥ 20 Hz: Open Loop Vector (Induction Motors); ≥ 40 Hz: Open Loop Vector (PM Motors)

Function Block Diagrams Up to 200 connections, 500us program scan time

About WOODWARD

CONTROL SYSTEMS

From base load to peak shaving, emergency standby power, or communications-intensive grid connected or island distributed power generation, Woodward controllers meet the diverse needs of the on-site electrical power generation industry. These controllers reduce total installed/operating cost and commissioning time while improving availability, efficiency, reliability and longevity. They also help you to meet the increased grid stability requirements resulting from the integration of renewables. With the longest legacy in the paralleling genset control market, our power generation control solutions set standards worldwide. By continuously investing in innovative solutions to real market problems we bring value to our original equipment manufacturers (OEMs), genset packagers, switchgear builders, system integrators, and end user customers.
