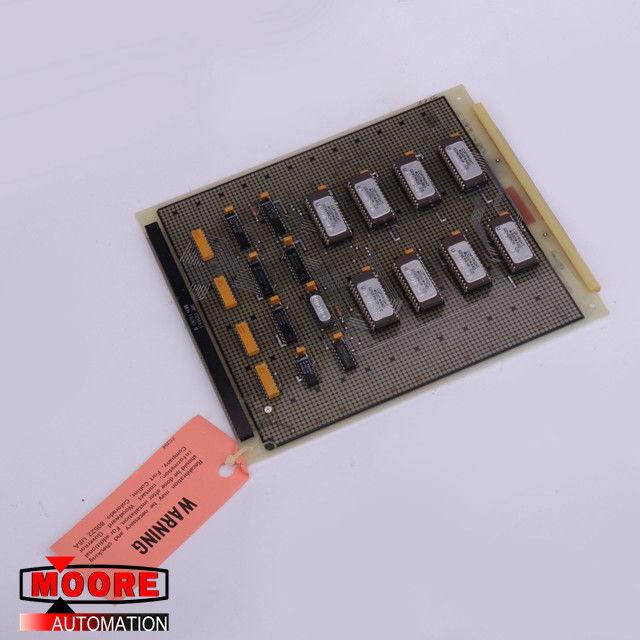

WOODWARD 5462-744 INPUT CONTACT BOARD

WOODWARD 5462-744 INPUT CONTACT BOARD

Product Details

Ambient Operating Temperature

-10 to +50°C (IP20 and flange types)

-10 to +40°C (with NEMA 1 kit)

Up to +60°C (with derate)

Global Certifications UL, CSA, CE, RCM, RoHS

Functional Safety Safe Torque Off, SIL3 according to IEC 62061, PLe according to ISO 13849-1

Standard I/O

(8) multi-function digital inputs (24Vdc)

(3) multi-function analog inputs (0 +/- 10 VDC, 4-20 mA)

(1) multi-function pulse inputs

(2) Safe Torque Off inputs

(1) fault relay output (form C)

(3) multi-function relay outputs (form A)

(2) multi-function analog output (0 +/- 10 VDC, 4-20mA)

(1) multi-function pulse output

I/O Expansion

(3) Analog Inputs -10 to +10V, 13 bit plus sign, 4 to 20mA

(16) Digital Inputs

(2) Analog Outputs (-10 to +10V, 11 bit magnitude)

(8) Digital Outputs (6 transistor, 2 relay)

Feedback (optional)

Incremental

Absolute (Stegmann, Heidenhain, Resolver)

Network Communication

Standard: Modbus RTU, RS-485, 115 kbps

Optional: EtherNet/IP, DeviceNet, Modbus TCP/IP, PROFINET, PROFIBUS-DP

Speed Control Range

1500:1 Closed Loop Vector (IM and PM Motors)

200:1 Open Loop Vector (IM Motors)

100:1 Open Loop Vector (PM Motors)

About WOODWARD

CONTROL SYSTEMS

From base load to peak shaving, emergency standby power, or communications-intensive grid connected or island distributed power generation, Woodward controllers meet the diverse needs of the on-site electrical power generation industry. These controllers reduce total installed/operating cost and commissioning time while improving availability, efficiency, reliability and longevity. They also help you to meet the increased grid stability requirements resulting from the integration of renewables. With the longest legacy in the paralleling genset control market, our power generation control solutions set standards worldwide. By continuously investing in innovative solutions to real market problems we bring value to our original equipment manufacturers (OEMs), genset packagers, switchgear builders, system integrators, and end user customers.
