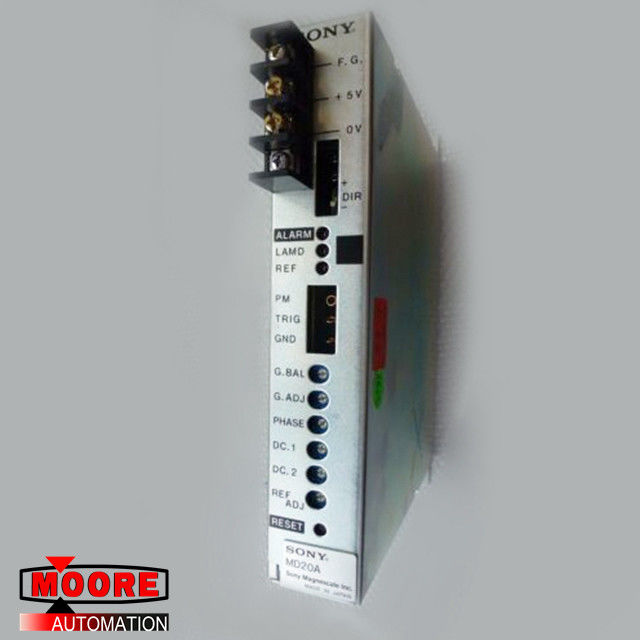

MD20A SONY Position Detection Module SR SERIES INTERPOLATOR
  • MD20A SONY Position Detection Module SR SERIES INTERPOLATOR

MD20A SONY Position Detection Module SR SERIES INTERPOLATOR

Place of Origin JAPAN
Brand Name SONY
Certification CO.CQ
Model Number MD20A
Product Details
Manufacture Year:
2020
Con 6DS1311-8AEtrol System:
MD20A
Application:
Nuclear Power Plant
Lead Time:
In Stock
Description:
SONY
Weight:
4lbs
High Light:

mitsubishi motion controller

,

b&r touch panel

Payment & Shipping Terms
Minimum Order Quantity
1
Price
inquiry
Packaging Details
new and original with factory sealed
Delivery Time
today
Payment Terms
T/T
Supply Ability
10 pieces a day
Product Description



MD20A SONY Position Detection Module SR SERIES INTERPOLATOR



Brand/Manufacturer SONY/JAPAN
Part Number

MD20A

Alternate Part Number MD20A
Description Position Detection Module
Dimennsions 3.2cm x 17.1cm x 14.2cm
Weight 0.8kg



Product Details

Detector unit for position control:

Generates A/B phase output signal with a resolution of 0.5 µm for feedback to an NC unit and up/down output signal for a display unit.

Selectable resolution and output pulse width

Compact design of 32 x 171 x 144 mm / 1.3"x 6.7"x 5.7" (W x H x D) permits the detector to be located in tight spaces as in a switchboard.

Operable from 5 V power supply. With the optional PU20 power supply unit, power for up to 3 axes can be supplied.

2-axis addition available with the analog addition unit MW10.

A/B phase signal, up/down signal, zero point signal and alarm signal output by differential line driver.

Specifications

Resolution: 0.5, 1, 2, 4, 2.5, 5, 10 µm selectable

Output pulse width: 0.25, 0.5, 1, 2, 2.5, 5, 10 or 20 µs selectable

Output signal: A/B phase output and up/down output by differential line driver (equivalent to SN75113); both simultaneous

Zero point signal: y differential line driver (equivalent to SN75113); both simultaneous In synch with scale signal

Alarm: Max. response speed exceeded, cable broken or disconnected, other circuit errors

Reset: Use reset key or external input or turn off and back on again

Power supply: + 5 V DC + 5% -2%

Power consumption: Max. 3 W

Operating temperature: 0 ˚C to 55 ˚C / 32 ˚F to 131 ˚F

Storage temperature: -10 ˚C to 75 ˚C / 14 ˚F to 167 ˚F

Dimensions: 32 x 171 x 144 mm/ 1.3" x 6.7" x 5.7" (W x H x D)

Mass: 0.8 kg/ 1.76 lbs
