| Place of Origin | USA |
| Brand Name | AB |
| Certification | CO.CQ |
| Model Number | 80025-523-10-R |

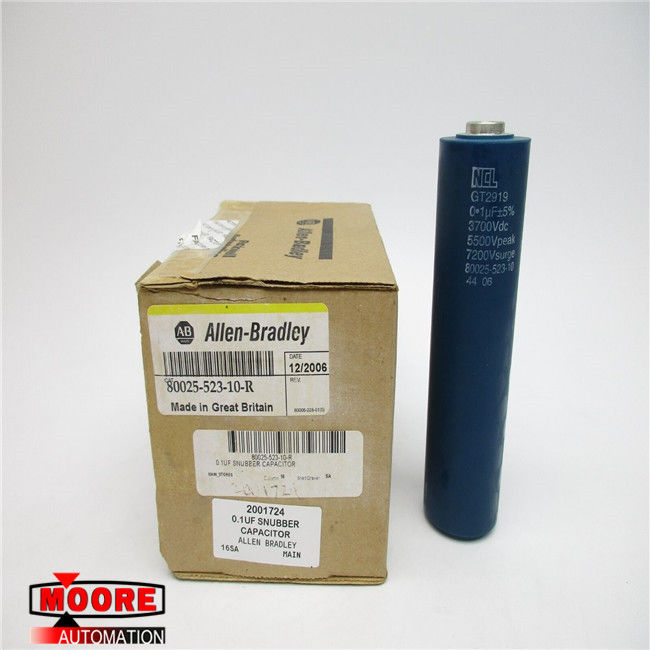

80025-523-10-R 8002552310R AB AB Capacitor 3700VDC 5500V PEAK 7200V SURGE
⇒ Click here for good price80025-523-10-R
| Brand/Manufacturer | AB/USA |
| Part Number |
80025-523-10-R |
| Alternate Part Number | 80025-523-10-R |
| Description | Capacitor |
| Dimennsions | 3.0cm x 3.0cm x 10.3cm |
| Weight | 0.3kg |
Product Details
Specification
Safety category: Cat. 4 and PLe per EN ISO 13849-1; SIL CL3 per IEC 61508 and EN 62061
Power supply
Voltage Current, max: 21.6…28.8V DC (24V nom), 0.9…1.2 x rated voltage PELV or SELV 0.105 A
Power consumption: 3 W
SS outputs: 24V DC, 20 mA, short-circuit protected
Pulse outputs: 24V DC, 30 mA, short-circuit protected
SS inputs, max: 5 mA per input
Input pulse rejection, max: 700 μs
Input ON voltage, min: 16.5V
Input OFF voltage, max: 5V
Input OFF current, max: 2 mA
Safety reaction time, max: 12 ms
Reset_In Input, max :5 mA per input
Reset time, max: 20 ms
Conductor size: 0.25…0.75 mm2 (24…18 AWG)
Strip length: 5 mm (0.25 in.)
