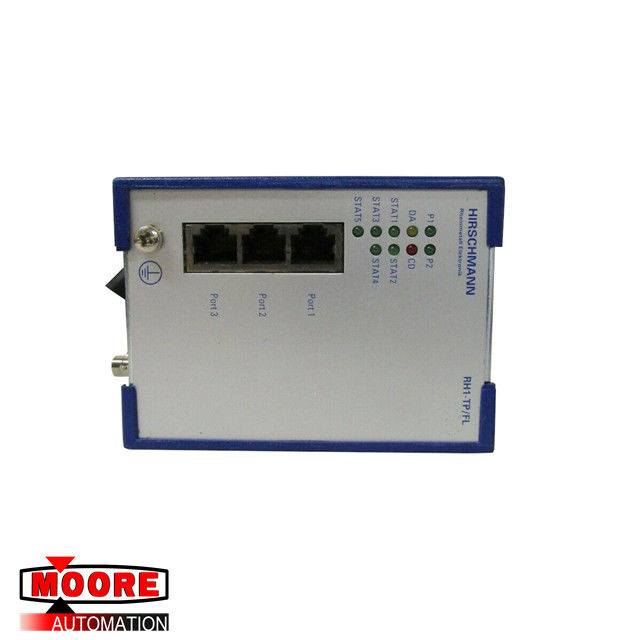

RH1-TP/FL HIRSCHMANN Industrial Ethernet Rail Hub

RH1-TP/FL HIRSCHMANN Rail Hub-3 Port

⇒ Click here for good price RH1-TP/FL

Product Details

More Interfaces

Power supply/signaling contact: 1 plug-in terminal block, 5-pin

Network size - length of cable

Twisted pair (TP): 0 - 100 m

Network size - cascadibility

Propagation equivalent: TP port <-> TP port: 190 m

Path variability value: TP port <-> TP port: 4 BT

Power requirements

Operating voltage: 24 V DC (-25% to +30%)

Current consumption at 24 V DC: max. 130 mA

Service

Diagnostics: LEDs (power, data, link status), signal contact/Fault relais (24 V DC / 1 A)

Redundancy

Redundancy functions: redundant 24 V power supply

Ambient conditions

Operating temperature: 0 ºC to +60 ºC

Storage/transport temperature: -25 ºC to +70 ºC

Relative humidity (non-condensing): 10% to 95%

MTBF: 159.7 years; MIL-HDBK 217F: Gb 25 ºC

Mechanical stability

IEC 60068-2-27 shock: 15 g, 11 ms duration, 18 shocks

IEC 60068-2-6 vibration: 1 mm, 2 Hz - 13.2 Hz, 90 min.; 0.7g, 13.2 Hz - 100 Hz, 90 min.; 3.5 mm, 3 Hz - 9Hz, 10 cycles, 1 octave/min.; 1g, 9 Hz - 150 Hz, 10 cycles, 1 octave/min.
