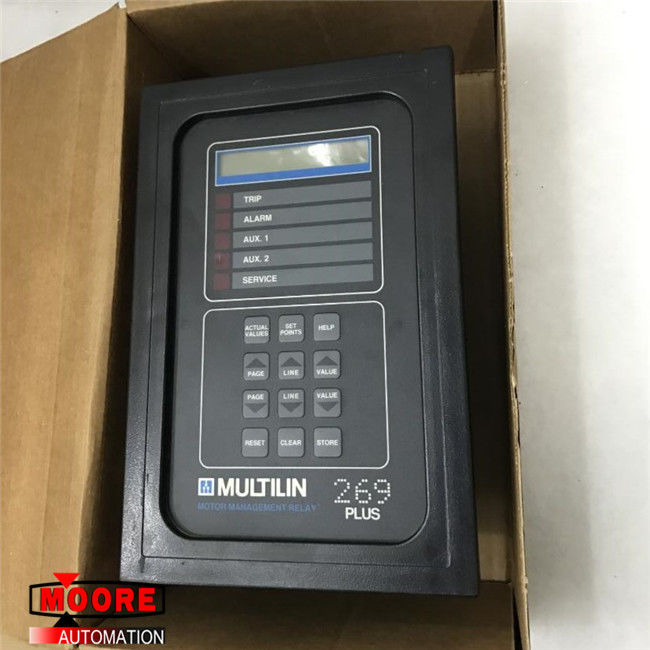

269PLUS-D/O-100P-125VDC Multilin 269 Plus Motor Management Relay
⇒ Click here for good price 269PLUS-D/O-100P-125VDC
Brand/Manufacturer | Multilin/USA |
Part Number |
269PLUS-D/O-100P-125VDC |
Alternate Part Number | 269PLUS-D/O-100P-125VDC |
Description | 269 Plus Motor Management Relay |
Dimennsions | 8.5cm x 8.0cm x 14.5cm |
Weight | 0.85kg |
Product Details
This system is intended to be used in conjunction with a variety of 3-phase AC motors. The system provides protection from electrical and thermal harm to the motor via resistor thermal detectors (RTDs) and current transformers (CTs). The power input to the control is either 80- 300 VDC or 65-265 VAC and 50-60 Hz. The maximum power consumption is 20 VA and 100 ms at 120VAC/125 VDC. The RTD sensors for this device are 100 ohm Platinum sensors. They have a display accuracy of ±2°C, and they have a setpoint range 0 - 200°C. The sensors have a dead band at 3°C. The sensors also have 25% of the resistance at 0°C.
The Multilin digital motor management relay 269PLUS-DO-225-100P-HI-125VDC is configured with a 225 option code. The second specification for phase and ground CT indicates that each are in the :5 category. The second specification for a relay fail safe code (up to eight options) shows that the Trip is NFS, the Alarm is fail safe (FS), the Aux1 is NFS, and the Aux2 is also FS. The final numeric is the fifth option in regard to relay contact arrangement. The fifth option specifies a N.C., N.O., N.O., arrangement for the Alarm, the Aux1, and the Aux2 respectively.
The General Electric Multilin digital relay 269PLUS-DO-225-100P-HI-125VDC provides the user with the option to select from up to eight programmable overload curves, standard to the manufacturer's fixed rotor time capability. Additionally, the operator is able to program a curve that is custom to the motor by entering in the service factor as the pickup level for the overload. This feature is called the FlexCurve (TM) function as it allows formation of a flexible custom curve tailored to the specific motor by the 269PLUS-DO-225-100P-HI-125VDC GE.
