| Place of Origin | USA |
| Brand Name | FAIVELEY |
| Certification | CO.CQ |
| Model Number | A544337 |

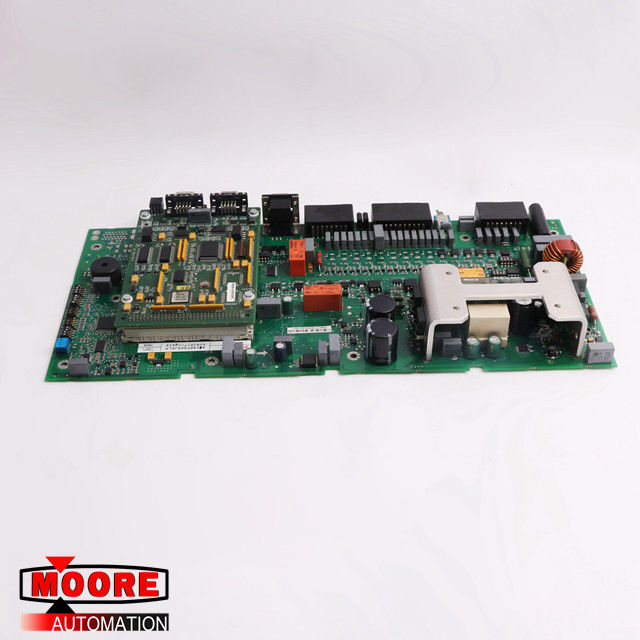

A544337 FAIVELEY Control board
⇒ Click here for good price A544337
| Brand/Manufacturer | FAIVELEY/USA |
| Part Number |
A544337 |
| Alternate Part Number | A544337 |
| Description | Control board |
| Dimennsions | 15.6cm x 8.5cm x 4.0cm |
| Weight | 0.4kg |
Product Details
A544337 Technical data
Efficiency: 97.5% at rated amps, nominal line voltage
Output Frequency: 0-320 Hz (programmable)
Control Inputs
Digital:
Quantity: (3) Semi-programmable; (4) Programmable
Type
Source Mode (SRC): 18-24V = ON, 0-6V = OFF
Sink Mode (SNK): 0-6V = ON, 18-24V = OFF
Analog:
Quantity: (1) Isolated, –10 to 10V or 4-20mA; (1) Non-isolated, 0 to 10V or 4-20mA
Specification
Resolution: 10-bit
0 to 10V DC Analog: 100k ohm input impedance
4-20mA Analog: 250 ohm input impedance
External Pot: 1-10k ohm, 2 Watt minimum
Control Outputs
Relay: Quantity: (2) Programmable Form C
Resistive Rating: 3.0A at 30V DC, 3.0A at 125V, 3.0A at 240V AC
Inductive Rating: 0.5A at 30V DC, 0.5A at 125V, 0.5A at 240V AC
Optional Relay Card:
Quantity: (6) Optional Programmable Form A (Not available for Frame C drives)
Specification
Resistive Rating: 0.1A at 30V DC Class II circuits, 3.0A at 125V, 3.0A at 240V AC
Inductive Rating: 0.1A at 30V DC Class II circuits, 3.0A at 125V 3.0A at 240V AC
