| Place of Origin | USA |
| Brand Name | FISHER |
| Certification | CO.CQ |
| Model Number | CL6828X1-A1 12P1395X062 |

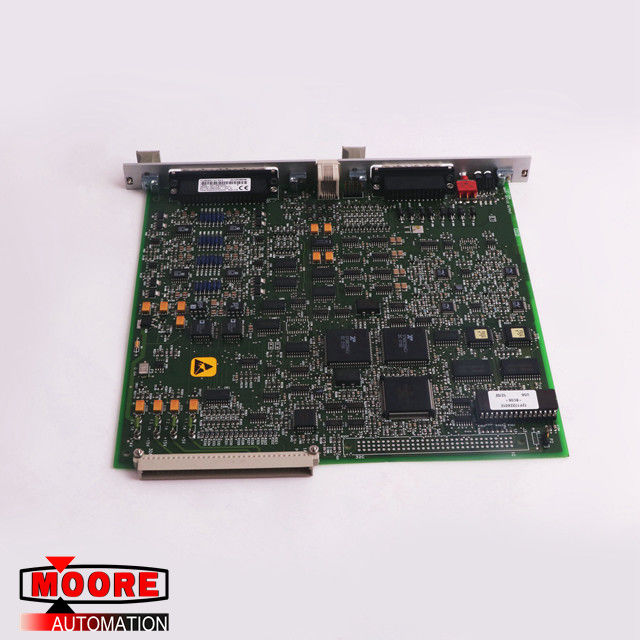

CL6828X1-A1 12P1395X062 FISHER Smart Analog I/O Module
⇒ Click here for good price CL6828X1-A1 12P1395X062
| Brand/Manufacturer | FISHER/USA |
| Part Number |
CL6828X1-A1 |
| Alternate Part Number | 12P1395X062 |
| Description | Smart Analog I/O Module |
| Dimennsions | 15.6cm x 11.3cm x 4.0cm |
| Weight | 0.5kg |
Product Details
Electrical
Proximitor Sensor Input: Accepts one non-contacting 3300-series 5 mm, 3300 8 mm or 3300 XL 8 mm Proximity Probe and Extension Cable.
Power: Requires -17.5 Vdc to -26 Vdc without barriers at 12 mA maximum consumption, -23 Vdc to -26 Vdc with barriers. Operation at a more positive voltage than -23.5 Vdc can result in reduced linear range.
Supply Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage.
Output Resistance: 50Ω
Capacitance: 69.9 pF/m (21.3 pF/ft) typical
Field Wiring: 0.2 to 1.5 mm2 (16 to 24 AWG) . Recommend using 3-conductor shielded triad cable and tinned field wiring. Maximum length of 305 metres (1,000 feet) between the 3300 XL Proximitor Sensor and the monitor. See the frequency response graphs in through Figure 13 (pages 27 and 28) for signal rolloff at high frequencies when using longer field wiring lengths.
Linear Range: 2 mm (80 mils). Linear range begins at approximately 0.25 mm (10 mils) from target and is from 0.25 to 2.3 mm (10 to 90 mils) (approximately –1 to –17 Vdc).
