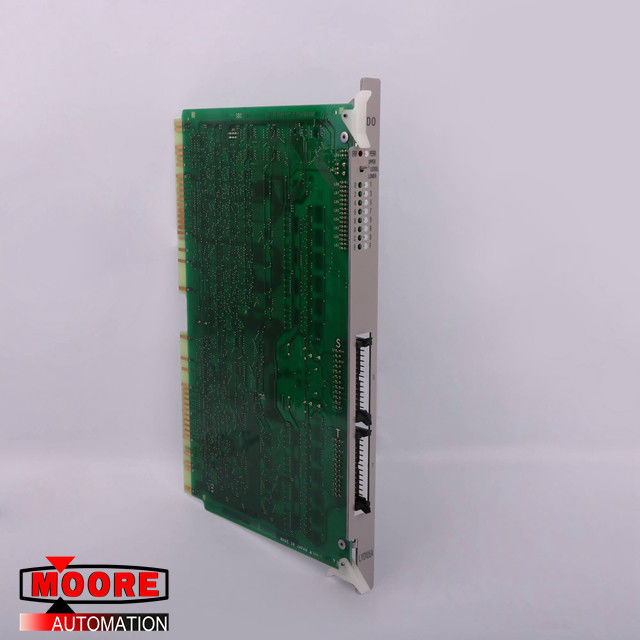

LYD105A HITACHI digital output module
⇒ Click here for good price LYD105A
Brand/Manufacturer | HITACHI/USA |
Part Number |
LYD105A |
Alternate Part Number | LYD105A |
Description | digital output module |
Dimennsions | 16.3cm x 12.1cm x 4.0cm |
Weight | 0.35kg |
Product Details
LYD105A Technical Data
Input 2 points
Input voltage ±10V 0 to 10 V
Input format Differential Single end
Input resolution 12bit
Input insulation No insulation
Output 2 points
Output voltage ±10V
Output conversion time 1ms
Output resolution 12Bit
Output insulation No insulation
Input 4 points
Input response time 1ms
Input insulation Photocoupler insulation
Output 4 points
Rated output voltage 24 V DC
Output delay time 1ms
Rated output current 0.5A
Output insulation Photocoupler insulation
Moore News
NONFERROUS INDUSTRY
The integrated process control system is a distributed control system.
The system consists of eight process control subsystems (workshop) for raw material grinding, lime digestion, dissolution, sedimentation, seed filtration, evaporation, product filtration, and roasting. Each workshop has an engineering station EWS and 2-3 operator stations OPS.
The data collection, real-time monitoring, data processing and other information transmission of the internal process parameters of the workshop are realized by the EtherNet/IP control network.The main production operations of the entire alumina plant are completed by these eight subsystems, each controlled by a ControlLogix controller.
The information layer of the integrated process control system uses EtherNet/IP Industrial Ethernet.
Transfer the information of the above eight workshops to the whole plant production information dispatching center via Ethernet.
The center has two servers SERVER1, SERVER2 and two operating stations OPS1, OPS2, using the factory machine SE Factory.
Centralized monitoring, control and management of the entire plant production process.
