| Place of Origin | USA |
| Brand Name | HITACHI |
| Certification | CO.CQ |
| Model Number | LUD700A |

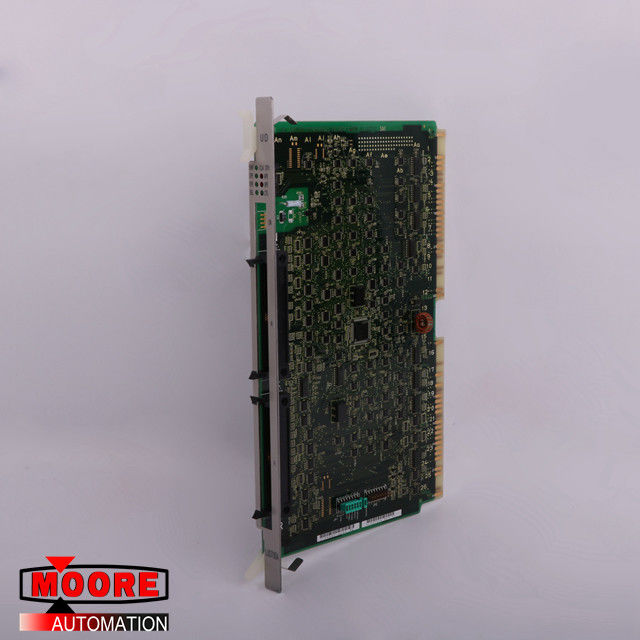

LUD700A HITACHI communication board UD module
⇒ Click here for good price LUD700A
| Brand/Manufacturer | HITACHI/USA |
| Part Number |
LUD700A |
| Alternate Part Number | LUD700A |
| Description | communication board UD module |
| Dimennsions | 16.0cm x 12.5cm x 4.4cm |
| Weight | 0.38kg |
Product Details
LUD700A Specifications
No. of occupancy I/O points:
I/O relay 16 points (dummy)
Relay for special model 128 points (16 bytes)
Parameter 128 bytes
No. of analog input points: 4 channels/module
Absolute max. input signal: Voltage input +/-15V; Current input +/-30mA
Input impedance: 30 Kohm (differential input) [TYP.]
Digital output: 13-bit binary value and +/-code 1 bit (max. value 8000)
Overall accuracy: +/-0.5%, max. (full scale at 25 degrees); +/-1%, max. (full scale at 0 to 55 degrees)
AD conversion rate: 2.5 ms, max.
Digital output processing function: Setting of channel operation specification, averaging, scale conversion, peak hold, offset, and gain
Operation indication: 7 LEDs
External power supply: 24 VDC +/-5% (ripple included), spike noise 50 mVp-p, max., current consumption 200 mA (max.)
Internal current consumption (DCSV): 90 mA, max.
External connection terminal: 18P detachable terminal strip (M3.5 x 7 screw)
