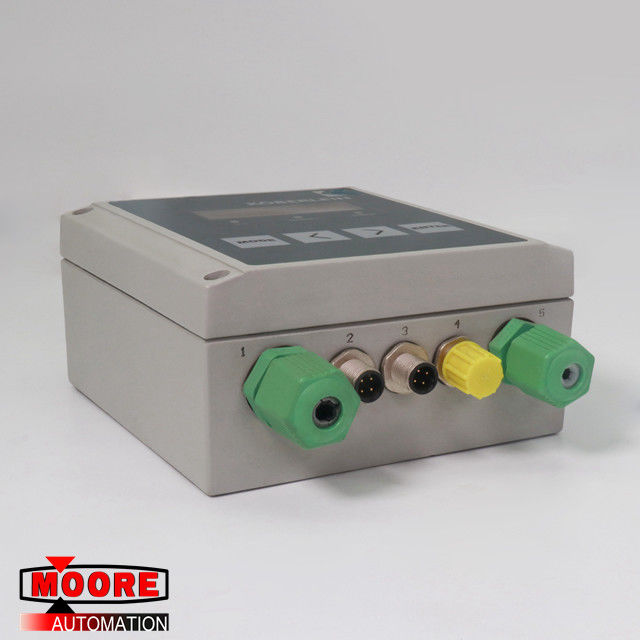

RMA-POWER-BOX 107/230 Koberlein Vibration Control Module

RMA-POWER-BOX 107/230 KOBERLEIN VIBRATION CONTROL MODULE

⇒ Click here for good price RMA-POWER-BOX 107/230

Product Details

RMA-POWER-BOX 107/230 Technical Data

Operating Voltage: 115 / 230V +/- 10% (must be set with the switch!)

Frequency: 50 .... 60Hz

Power consumption: max.60VA

Recommended Pre-fusing: 2 A / characteristic line C

Magnet – Output

adjustable output voltage: 15Vss ... 30Vss

adjustable output frequency: 10.00Hz ... 99.99 Hz

smallest frequency interval:0.01Hz

maximum connecting power: 50VA

Disconnection in case of: overcurrent, short circuit, derating, open circuit

Inputs

Input „vibration on“: current consumption at 24V DC: approx. 7mA

Input „Reset“: current consumption at 24V DC: approx. 7mA

Relay output floating:

Maximum contact load 30V DC 0.5A

Operating ambient temperature:

Storage: 0 ... 50°C; -25 ... 85°C

Measurements: W x H x D 140x180x72mm

EMV - Test According toEN55011; EN61000-3-3 (system perturbation)

Protection class: Ι (grounded)

Protection type: IP65 (with screwed connecting lines)
