TM0180-A08-B00-C10-D05 PROVIBTECH Extension Cable Automation DCS
  • TM0180-A08-B00-C10-D05 PROVIBTECH Extension Cable Automation DCS
  • TM0180-A08-B00-C10-D05 PROVIBTECH Extension Cable Automation DCS

TM0180-A08-B00-C10-D05 PROVIBTECH Extension Cable Automation DCS

Place of Origin USA
Brand Name PROVIBTECH
Certification CO.CQ
Model Number TM0180-A08-B00-C10-D05
Product Details
Manufacture Year:
2020
Con 6DS1311-8AEtrol System:
TM0180-A08-B00-C10-D05
Application:
Nuclear Power Plant
Lead Time:
In Stock
Description:
PROVIBTECH
Weight:
4lbs
High Light:

distributed control system for industrial automation

,

dcs industrial automation

Payment & Shipping Terms
Minimum Order Quantity
1
Price
inquiry
Packaging Details
new and original with factory sealed
Delivery Time
today
Payment Terms
T/T
Supply Ability
10 pieces a day
Product Description

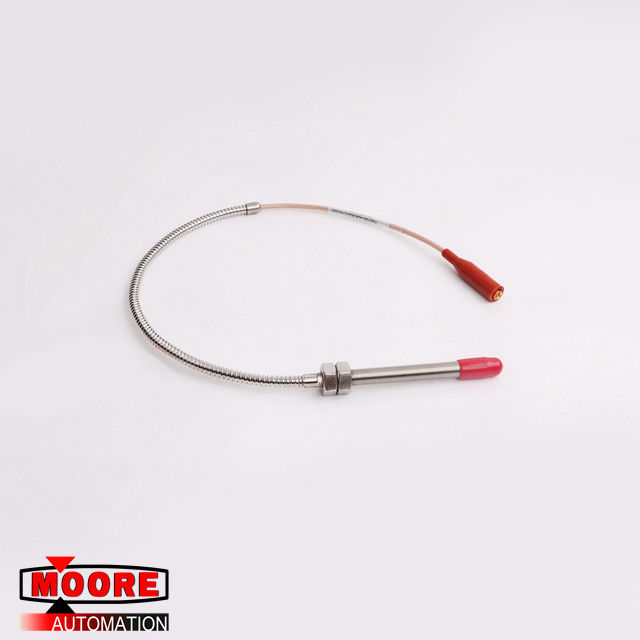

TM0180-A08-B00-C10-D05 PROVIBTECH Extension Cable



⇒ Click here for good price TM0180-A08-B00-C10-D05



Brand/Manufacturer PROVIBTECH/USA
Part Number

TM0180-A08-B00-C10-D05

Alternate Part Number TM0180-A08-B00-C10-D05
Description Extension Cable
Dimennsions 1.0cm x 1.0cm x 15.2cm
Weight 0.1kg



Product Details

ProvibTech’s extension cable design results in better system performance and a longer life cycle. One may select various extension cable lengths based on the probe cable length. The total length of the probe and the extension cable need to be 5m or 9m in total length. The connector on the extension cable is also an API 670 standard, allowing compatibility with other manufacturers’ proximity probe systems.



TM0180-A08-B00-C10-D05 Technical Data

Electrical

Power Supply: Voltage -23 to -30VDC; Current < 12mA

Linear Range: 2.0mm (80mils) begins at 0.25mm (10mils) from probe face (AISI4140)

Range is 0.25 - 2.25mm (10 - 90 mils)

Sensitivity: 7.87 mV/um (200mV/mil)

Temperature Sensitivity (Normal): Probe and 5 meters cable, from -35o C to 120oC, tolerance is within ±0.3%/ oC in the middle of the linear range. At 2.25mm (90mil), nominal ±0.5%/ oC

Linearity (deviation from straight line):

Within±0.0254mm (±1.0 mil) of a straight line, when calibrated as a system. ±0.038mm (±1.5mil) typical including interchangeability errors

Frequency Response (±3db): 0 - 10.0 KHz

Minimum Target Size: 15mm (0.6 inch) in diameter

TM0180-A08-B00-C10-D05 PROVIBTECH Extension Cable Automation DCS 0
