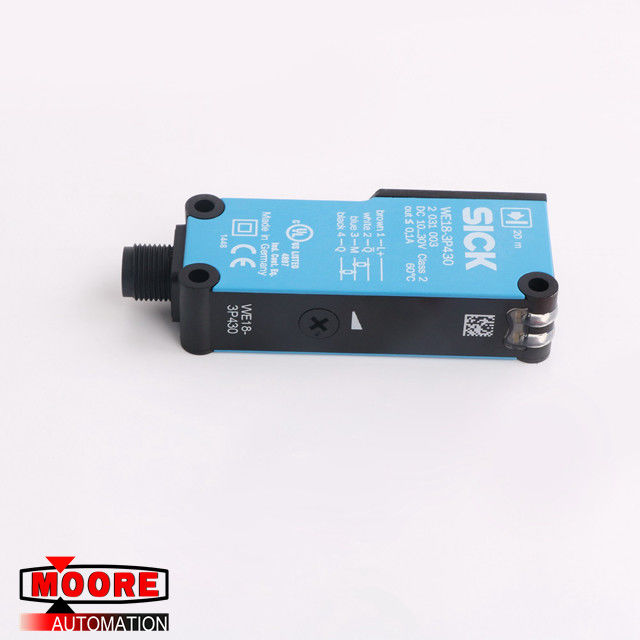

WE18-3P430 SICK Photoelectric Switch
⇒ Click here for good price WE18-3P430
| Brand/Manufacturer |
SICK/USA |
| Part Number |
WE18-3P430
|
| Alternate Part Number |
WE18-3P430 |
| Description |
Photoelectric Switch |
| Dimennsions |
1.8cm x 7.6cm x 3.5cm |
| Weight |
0.04kg |
Product Details
Detailed technical data
WE18-3P430 Features
Sensor/ detection principle Through-beam photoelectric sensor
Dimensions (W x H x D) 17.6 mm x 75.5 mm x 33.5 mm
Housing design (light emission) Rectangular
Sensing range max. 0 m ... 20 m
Type of light Visible red light
Light source LED 1)
Light spot size (distance) Ø 450 mm (15 m)
Angle of dispersion 1.5°
Wave length 645 nm
Adjustment Potentiometer, 1 turn
WE18-3P430 Mechanics/electronics
Supply voltage 10 V DC ... 30 V DC 1)
Ripple < 5 Vpp
Power consumption, sender < 45 mA 3)
Power consumption, receiver < 35 mA 3)
Switching output PNP
Output function Complementary
Switching mode Light/dark switching
Output current Imax. 100 mA
Response time < 500 µs 4)
Switching frequency 1,000 Hz 5)
Angle of reception 2°
Connection type Male connector M12, 4-pin
Power consumption, sender < 45 mA 3)
Power consumption, receiver < 35 mA 3)
Switching output PNP
Output function Complementary
Switching mode Light/dark switching
Output current Imax. 100 mA
Response time < 500 µs 4)
Switching frequency 1,000 Hz 5)
Angle of reception 2°
Connection type Male connector M12, 4-pin
