| Place of Origin | USA |
| Brand Name | SST |
| Certification | CO.CQ |
| Model Number | 5136-PFB-PCI |

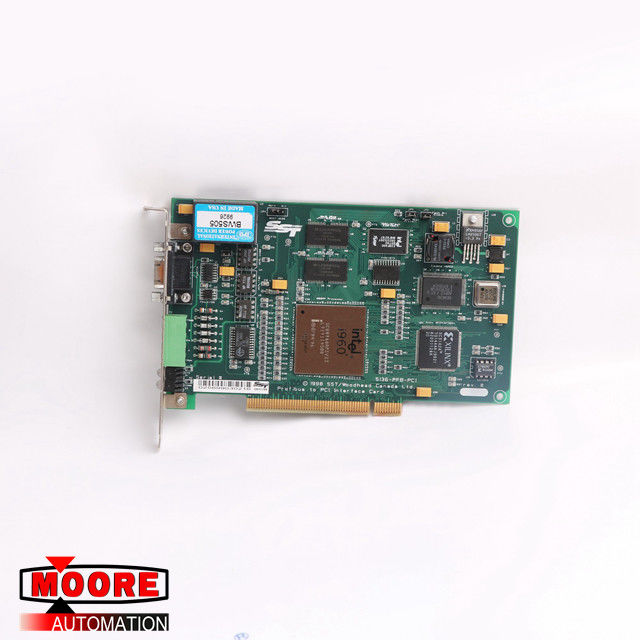

5136-PFB-PCI SST PROFIBUS Communication Card
⇒ Click here for good price 5136-PFB-PCI
| Brand/Manufacturer | SST/USA |
| Part Number |
5136-PFB-PCI |
| Alternate Part Number | 5136-PFB-PCI |
| Description | PROFIBUS Communication Card |
| Dimennsions | 5.0cm x 15.0cm x 12.8cm |
| Weight | 0.34kg |
Product Details
The 5136-PFB-PCI is the next Generation Profibus PCI card. When possible, backward compatibility is maintained with the legacy 5136-PFB-PCI, but the new SST-PFB3-PCI is not a drop in replacement for the existing 5136-PFB-PCI card.
The 5136-PFB-PCI card can:
Act as a DP slave
Act as a DP master
Send and receive FDL (layer 2) messages
Support Master Class 2
Support simultaneous operation in all of the above modes
Support the standard Profibus baud rates of 9.6K, 19.2K, 93.75K, 187.5K, 500K, 750K, 1.5M, 3M, 6M and 12M baud.
The5136-PFB-PCI requires both 3.3V and 5V to be supplied by the motherboard. Because 3.3V
supply voltage is optional in PCI revision 2.1, the SST-PFB3-PCI may not function in some PCI
2.1-compliant motherboards.
The 5136-PFB-PCI will auto detect the motherboard PCI I/O signaling level and adjust its
signaling level accordingly, allowing it to function in PCI systems that support either 5V or 3.3V
I/O signaling levels.
The 5136-PFB-PCI does not support 3.3V motherboard signaling levels. Because of this, the
5136-PFB-PCI is not PCI 2.3-compliant.
5136-PFB-PCI Technical Data
Function: Single channel Profibus Master/Slave, PCI 2.2- and PCI 2.3-compliant
Current Consumed: Estimated Max 300mA @5V, 450mA @3V
Environmental: Operating Temperature of 0 – 60 degrees Celsius
Card Connector: Standard Profibus DB-9 connector
