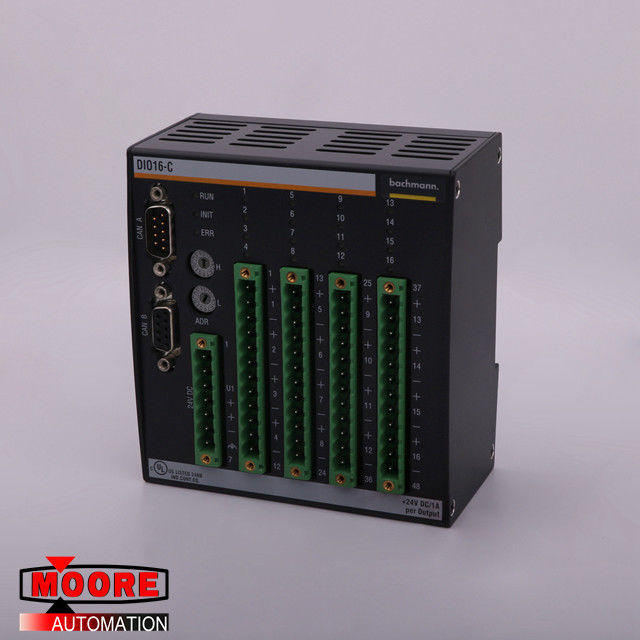

DIO16-C Bachmann Digital Input Output Modules
  • DIO16-C Bachmann Digital Input Output Modules
  • DIO16-C Bachmann Digital Input Output Modules

DIO16-C Bachmann Digital Input Output Modules

Place of Origin AUSTRIA
Brand Name Bachmann
Certification CO.CQ
Model Number DIO16-C
Product Details
Manufacture Year:
2020
Con 6DS1311-8AEtrol System:
DIO16-C
Application:
Nuclear Power Plant
Lead Time:
In Stock
Description:
Bachmann
Weight:
4lbs
High Light:

4lbs bachmann module

,

Bachmann digital io modules

Payment & Shipping Terms
Minimum Order Quantity
1
Price
inquiry
Packaging Details
new and original with factory sealed
Delivery Time
today
Payment Terms
T/T
Supply Ability
10 pieces a day
Product Description



DIO16-C Bachmann Digital Input/Output Modules



⇒ Click here for good price DIO16-C



Brand/Manufacturer Bachmann/AUSTRIA
Part Number

DIO16-C

Alternate Part Number DIO16-C
Description Digital Input/Output Modules
Dimennsions 11.6cm x 5.0cm x 13.8cm
Weight 0.46kg



Product Details

The digital I /O modules DIO16-C are stand-alone CAN slave modules with 16, 32 or 64 digital input /output channels.

Stand-alone, compact CAN slave module

16 / 32 channels can be freely configured as input or output

Digital outputs each with 1 A continuous current

Two internally connected CAN interfaces for loop-through of the cable

Galvanic isolation between CAN interfaces and control electronics

Baud rate and node ID can be set via rotary switch

Supply voltage 18 to 34 VDC

Operating range 0 to +60°C without additional cooling

Full wiring without additional backplanes

Snappable on EN 50022 backplanes



DIO16-C 00010285-00 CAN slave - digital input/output module; 16x DIO; 24V / 1A; 1 group; CAN/CANopen; 2x DSUB 9 (In/Out); up to 1Mbit/s; isolated



Inputs

Quantity: Max. 16

Input delay: < 3.5 ms

Internal resistance: 6 kΩ

Status display: Green LED

Outputs

Quantity: Max. 16

Supply voltage: 18 to 34 VDC

Isolated output blocks: 1-16

External power supply

Voltage range: 18 to 34 VDC

Current consumption (without I /O): Normally 100 mA at 24 VDC

Reverse polarity protection: Yes

Operating temperature: -30 to +60°C

Rel. humidity operation: 5 to 95% without condensation

Storage temperature: -40 to +85°C

Rel. humidity storage: 5 to 95% with condensation

Pollution degree: 2 (without condensation; according to IEC 60664-1)

DIO16-C Bachmann Digital Input Output Modules 0
