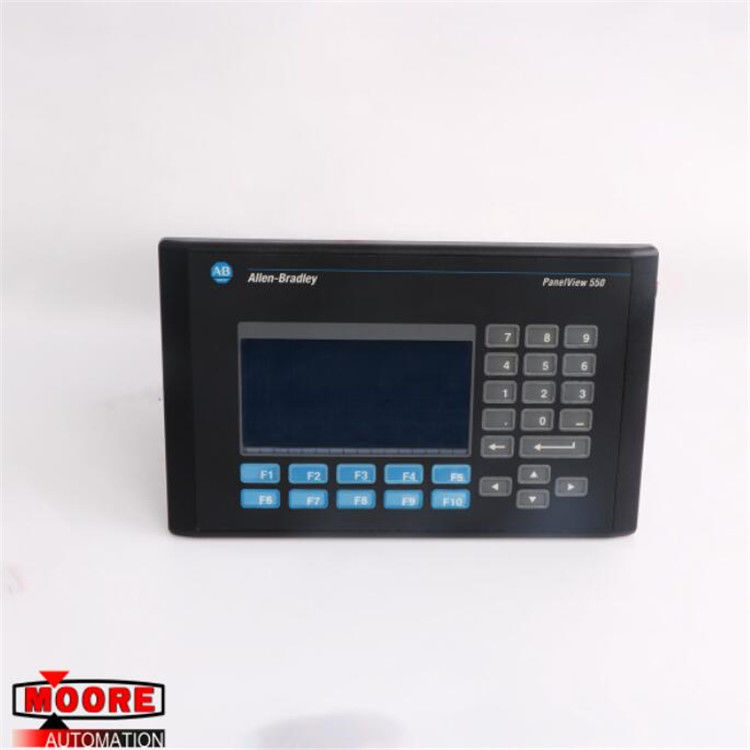

2711-B5A1L1 2711-B5A1L1 Allen Bradley AB PanelView 550 Mono/Touch/Keypad

2711-B5A1L1 2711-B5A1L1 Allen Bradley AB PanelView 550 Mono/Touch/Keypad

⇒ Click here for good price 2711-B5A1L1

Product Details

The obsolete AB 2711-B5A1L1 Panelview 550 is an HMI or Human-Machine Interface terminal that allows the user to interface with other machines. This Panelview HMI creates its interface with its 5.5 in. monochrome blue mode LCD screen which the users can cover with an antiglare shield for protection and better visibility. The monochrome LCD shows data in high-performance blue pixel graphics.

The 2711-B5A1L1 HMI terminal can connect to any other machines that use the Panelbuilder 32 software. The terminal makes its connections with its Remote I/O Communication Port or with its RS-232 Printer Port and a 2711-NC13 communication cable or cables. The user is able to control the 2711-B5A1L1 unit and the machine it is interfacing with by using the 2711-B5A1L1’s keypad and its touchscreen to enter information, commands, and data. This unit is a DC terminal and it is powered by 24V DC power. The 2711-B5A1L1 HMI terminal has an internal memory capacity of 170 KB of application runtime memory. This unit is illuminated by a halogen lamp which will last for a long time and is replaceable if necessary. The internal halogen backlight’s replacement part number is 2711-NL1. The approximate shipping weight of the 2711-B5A1L1 is 6 lbs while the approximate shipping dimensions are 14 x 11 x 8 inches. The most common Series that the 2711-B5A1L1 HMI terminal comes in are Series A, B, C, D, E, F, G, and H, while the most common firmware that it uses are firmware versions 1.00-4.48. The 2711-B5A1L1 is CE-marked and UL certified.

AB News

Absolute Encoders on EtherNet/IP Features

842E EtherNet/IP Absolute Encoders

Offers single-turn 18-bit resolution and multi-turn 30-bit resolution
Offers washdown rating up to IP67
Supports endless shaft functionality
Available in solid and hollow shafts
Includes dual Ethernet ports to support linear and Device Level Ring topologies

842E-CM Integrated Motion on EtherNet/IP Absolute Encoders

Supports integrated motion on EtherNet/IP as a feedback only axis
Offers single-turn 18-bit resolution and multi-turn 30-bit resolution
Offers washdown rating up to IP67
Supports endless shaft functionality
Available in solid and hollow shafts
Includes dual Ethernet ports to support linear and Device Level Ring topologies
