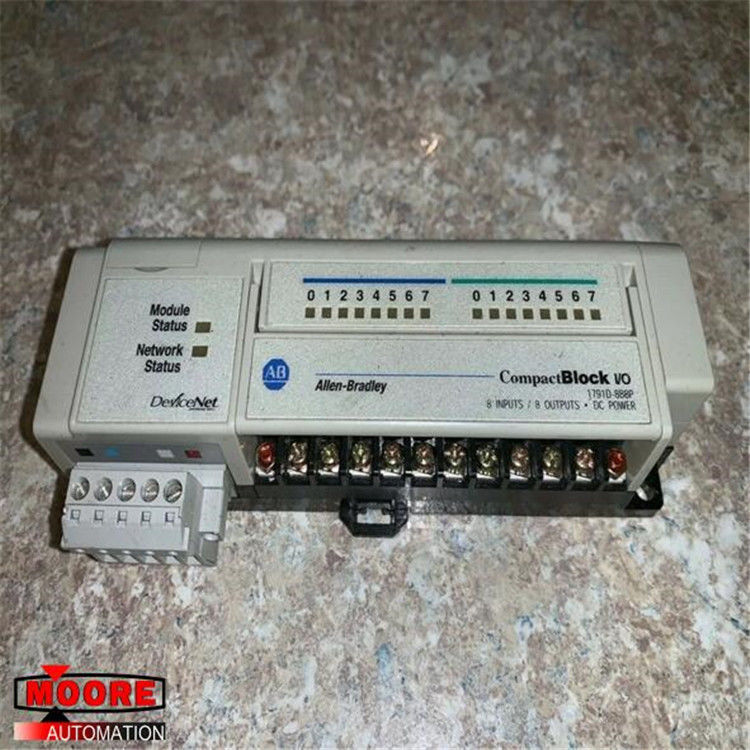

1791D-8B8P 1791D8B8P Allen Bradley AB CompactBlock I/O Module
  • 1791D-8B8P 1791D8B8P  Allen Bradley  AB  CompactBlock I/O Module
  • 1791D-8B8P 1791D8B8P  Allen Bradley  AB  CompactBlock I/O Module

1791D-8B8P 1791D8B8P Allen Bradley AB CompactBlock I/O Module

Place of Origin USA
Brand Name AB
Certification CO.CQ
Model Number 1791D-8B8P
Product Details
Manufacture Year:
2020
Con 6DS1311-8AEtrol System:
1791D-8B8P
Application:
Nuclear Power Plant
Lead Time:
In Stock
Description:
AB
Weight:
4lbs
High Light:

allen bradley io modules

,

allen bradley plc modules

Payment & Shipping Terms
Minimum Order Quantity
1
Price
inquiry
Packaging Details
new and original with factory sealed
Delivery Time
today
Payment Terms
T/T
Supply Ability
10 pieces a day
Product Description



1791D-8B8P 1791D8B8P Allen Bradley AB CompactBlock I/O Module



⇒ Click here for good price 1791D-8B8P

Brand/Manufacturer   AB/USA
Part Number

  1791D-8B8P

Alternate Part Number   1791D-8B8P
Description   MOTOR SERVO
Dimennsions

  15.2 cm x 6.3 cm x 5.1 cm

Weight   0.2 kg



Product Details

The 1791D-8B8P is manufactured by Allen Bradley, Rockwell Automation. It is a CompactBlock I/O module containing a built-in power supply, a DeviceNet I/O adapter and various I/O circuits. It belongs to the 1791D CompactBlock family of devices and is a base module containing 8 sinking inputs and 8 sourcing outputs. The size of the device enables it to be used in a close range of any sensor or actuator in a constrained space with many distributed I/O blocks. The 1791D-8B8P features a built-in 10 to 30 Volt DC power source that helps the device adapt to a broad range of power supplies and voltage levels from the network and a NEMA Type 1+ input that allows the device to be compatible to different sensors. A communication rate of maximum 500 Kbps is achievable up to a distance of 100 meters using this device, and to protect against accidental incorrect wiring, a feature is provided to prevent the output from short-circuiting. To prevent the module from crashing due to wrong baud rates, an automatic baud detection system is also provided. Because of how compact this device is, it could be used close up to an actuator or a sensor, which also lowers the cost of wiring. Any master PLC, SLC, or SoftLogix Controller can be connected via this device. In such a master/slave condition, this device acts as a slave.



Being highly compact in nature, no additional power supply or adapter is required for this device. However, for the inputs and outputs, use an independent 24 Volt DC supply. Options are available in the device to choose between three different communications modes, which are polled, cyclic and change-of-state. This I/O module could be mounted both vertically and horizontally on either a DIN rail or an enclosed panel; however, the user should ensure that the operating temperatures remain between 0 and 60 degrees Celsius. For this module’s wire connections, use 14 gauge stranded wire which has an insulation of at least 3.64 inches.

1791D-8B8P 1791D8B8P  Allen Bradley  AB  CompactBlock I/O Module 0
