IC693MDL240 GE 120 Vac Input (16 Points)

IC693MDL240 GE 120 Vac Input (16 Points)

⇒ Click here for good price IC693MDL240

Product Details

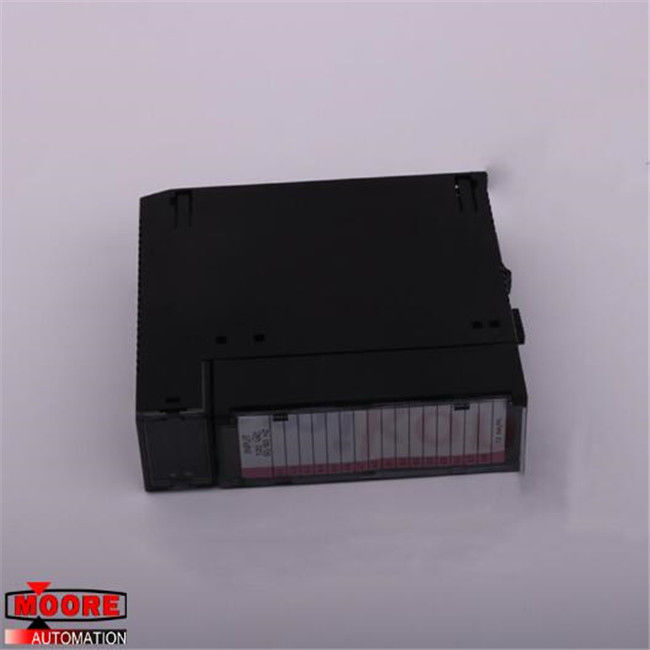

The IC693MDL240 is a 120 volt AC input module from GE Fanuc. It is for the series 90-30 Programmable Logic Controllers. This module has 16 input points that share a single common power input terminal. These 16 circuits are reactive inputs – they have a resistor and a capacitor. When there is current travelling into an input point, there will be a reading of logic 1 in the input status table (%I). The input module is functional with a range of different input devices. For example, the user can operate it with limit switches or pushbuttons, as well as electronic proximity switches.

To operate field devices with the GE Fanuc IC693MDL240, the user must supply power. The module needs AC power as it cannot operate with direct current. On top of the module, there are LEDs. These indicate the ON/OFF status of each respective input point. There are two horizontal rows on the LED block, each with eight green LEDs. The top row is labelled A1 and is for points 1 through 8. The bottom row is labelled B1 and is for points 9 through 16.

The module has a hinged door. An insert goes between the inner and outer surfaces of the door. When the door is closed, the surface towards the inside has information on circuit wiring. On the outer surface, information on circuit identification can be recorded. This is a high-voltage module, as indicated by the red color-coding on the outside left edge of the insert. The module is compatible with the Series 90-30 PLC system and so users are able to install it any I/O slot of either a 5-slot or 10-slot baseplate.
