IC693MDL753 GE Output Module
  • IC693MDL753  GE   Output Module
  • IC693MDL753  GE   Output Module

IC693MDL753 GE Output Module

Place of Origin USA
Brand Name GE
Certification CO.CQ
Model Number IC693MDL753
Product Details
Manufacture Year:
2020
Con 6DS1311-8AEtrol System:
IC693MDL753
Application:
Nuclear Power Plant
Lead Time:
In Stock
Description:
GE
Weight:
4lbs
High Light:

GE Controller board

,

geautomation board

Payment & Shipping Terms
Minimum Order Quantity
1
Price
inquiry
Packaging Details
new and original with factory sealed
Delivery Time
today
Payment Terms
T/T
Supply Ability
10 pieces a day
Product Description



IC693MDL753 GE Output Module



⇒ Click here for good price IC693MDL753



Brand/Manufacturer   GE /USA
Part Number

 IC693MDL753

Alternate Part Number  IC693MDL753
Description   MOTOR SERVO
Dimennsions

  15.2x15.2x5.1cm

Weight   0.3KG



PRODUCT DETAILS

The GE Fanuc IC693MDL753 is 12/24 volt DC, 0.5A Positive Logic Output module. Designed for the Series 90-30 Programmable Logic Controller, this output module is equipped with 32 discrete outputs. These outputs have been set up in four separate isolated groups of eight. Each group has its own dedicated common. As they are sourcing type outputs, they switch the loads on the positive side of the power supply to supply current to the load. The outputs on this module are capable of switching loads from +12 through +24 VDC (+20%, –15%). They can also source current to a maximum value of 0.5 amps per point. In the group commons, there are user I/O connectors. Each connector has two pins, which can handle up to 3A current. When the user is connecting the group common, it is advised that connections be made to both pins.

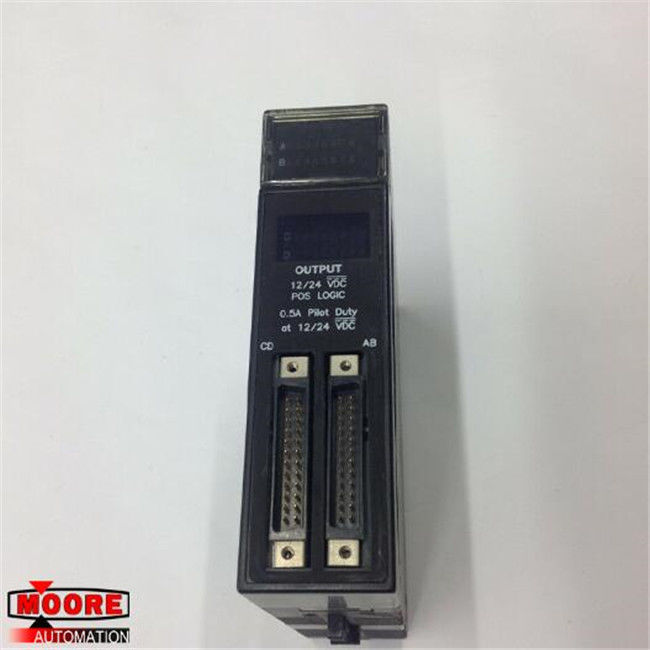

Each group of output points can drive different loads, however there must be an external power source provided by the user to make this happen. There are opto-couplers on this module, which provide backplane isolation between the field side and logic side. Like many other output modules by GE Fanuc, this one is compatible with the Series 90-30 PLC system. To implement it, users can install it in any I/O slot of the baseplate. On the front of the module, there are two male 24-pin connectors. These allow for connections to the user load devices. Output groups A and B have an interface provided by the connector on the right side, while groups C and D use the connector on the left side.
