IC200PWR102 GE POWER SUPPLY WITH EXPANDED 3.3VDC 120/240VAC INPUT

IC200PWR102 GE POWER SUPPLY WITH EXPANDED 3.3VDC 120/240VAC INPUT

⇒ Click here for good price IC200PWR102

Product  Details

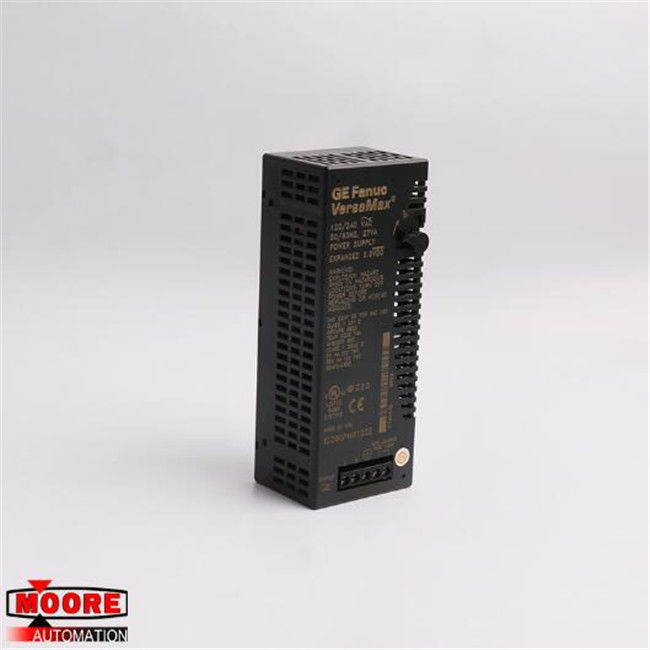

Made by General Electric Automation and Controls, the IC200PWR102 is a VersaMax expanded power supply unit with extended functionality. This power supply unit is used to give power to several types of devices which are connected to the backplane—input and output modules, processing units, and network interface units, for example. The IC200PWR102 differs from many other VersaMax power units in that it operates primarily with alternating current (AC) rather than direct current (DC). While this device is capable of being a main power supply, it is also adept at functioning as a supplementary power source when attached to a power supply booster carrier.

The IC200PWR102 has different options in regards to input voltage. When a jumper is installed, the input voltage can range anywhere from 85 volts to 132 volts of alternating current, but 120 volts is nominal. When a jumper is not installed, the input voltage range is from 176 volts to 264 volts alternating current, with a nominal voltage of 240 volts. Vital note: A jumper should not be used in conjunction with 240 volts of input voltage. Doing so will cause damage to the power module and may result in dangerous conditions. The IC200PWR102 can safely operate at 120 volts AC without a jumper.

The input power for this product is 27 volt-amperes, and the frequency can range from 47Hz to 63Hz. The hold-up time is rated at 20 milliseconds; however, if this device is operating with 120 volts of input voltage without a jumper installed, this hold up time will not be accurate. Output voltages are 3.3 volts and 5 volts, totaling in a maximum of 1.5 amperes. Limited protection measures are supported for this device, including short circuit and overload protection.
