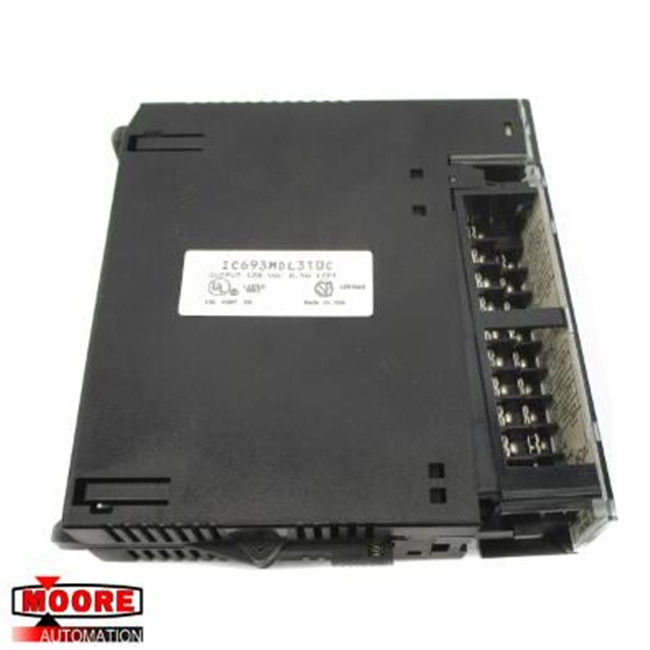

IC693MDL310 GE 120V AC 0.5A 12PT Output Module
⇒ Click here for good price IC693MDL310
| Brand/Manufacturer |
GE /USA |
| Part Number |
IC693MDL310
|
| Alternate Part Number |
IC693MDL310 |
| Description |
MOTOR SERVO |
| Dimennsions |
15.5x15.5x10.5cm
|
| Weight |
0.42kg |
Product Details
IC693MDL310 is a 120-volt, 0.5 Amp AC output module that offers 12 output points in two separate classes. The two classes have six points each. Each class has an isolated common which is not knotted together within the module. This is important since it permits each class to be used in different stages of AC supply. A 3 Amps fuse is used to safeguard every class. An RC snubber is offered to every output to safeguard against transient electrical noise coming from the power line. IC693MDL310 delivers a high degree of inrush current that enhances the outputs ability to control many inductive and incandescent loads. The AC power to run operations linked to output should be supplied from the user.
There are LED indicators located at the top of the module which indicates the on/off condition of every point. The module makes use of the first 6 LEDs listed as B1 through 6 in the bottom row for output status. The IC693MDL310 is also regarded as a 16-point output for output 1 to 6 and 9 to 14. The module consists of an insert between the inside and outside surface of the hinged door. The module has an output voltage range of 85 to 132 voltages AC. Its output current is 0.5 Amps per point. The inrush least load current is 5 Amps highest for a single cycle. The module also has an output leakage current of 3 mA maximum at 120 volts AC. The power consumed by the module is 210 mA from 5 volts bus on the backplane. Furthermore, it has an isolation of 500 volts between every class.
