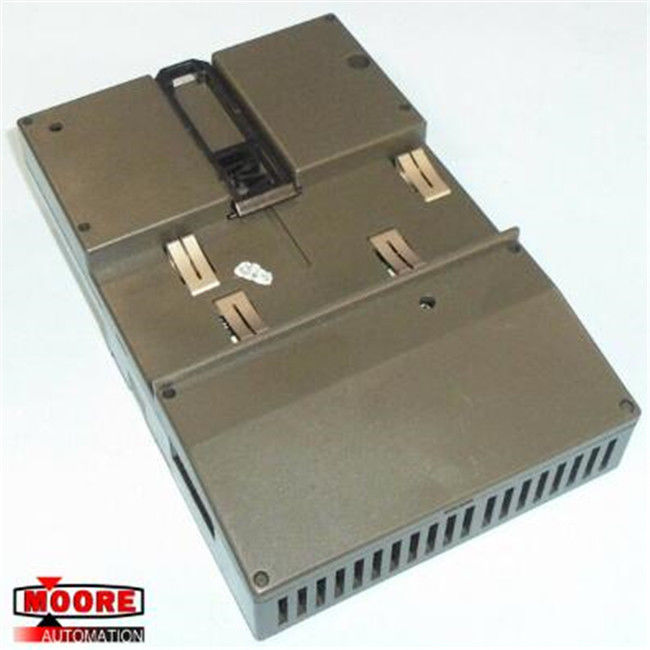

IC200PBI001 GE Remote I/O Profibus DP network interface unit
⇒ Click here for good price IC200PBI001
| Brand/Manufacturer |
GE /USA |
| Part Number |
IC200PBI001
|
| Alternate Part Number |
IC200PBI001 |
| Description |
MOTOR SERVO |
| Dimennsions |
3.5x13x13.5cm
|
| Weight |
0.28kg |
Product Details
The IC200PBI001 is Profibus-DP Network Interface Unit (NIU) that functions as a slave on a Profibus-DP network designed by GE for the VersaMax Series. The IC200PBI001 acts as a controller for a set of I/O modules. The module operates off a provided power supply that installs directly onto the NIU.
The network address for the IC200PBI001 is 1 to 125 with a network data rate of 9.6Kbaud to 12Mbaud, auto-detected. There is a maximum of 375 bytes of I/O data with up to 244 byes of inputs or 244 bytes of outputs. The IC200PBI001 can control 64 I/O modules per NIU.
The IC200PBI001 is equipped with five LED indicators to help the user monitor power and status of the NIU. When power is applied, the PWR LED will be green. When the OK LED is green, firmware is functional. If the FAULT LED is amber, this suggests the NIU has found fault internally or in an I/O module. The NETWORK LED can be green, amber, or off depending on the following. If green, the I/O is successfully being transferred on the network. If the LED is amber, configuration sent by the master device was rejected. When the NETWORK LED is off, no communication is detected with the master device. The FORCE LED specifies the presence of any forced I/O value. This version of the IC200PBI001 Profibus NIU is compatible with all VersaMax High-Density Analog Modules.
Our service
100% full New - Original Factory Seal
Warranty: 12 months
Package: Original packing with cartons
Delivery time: Shipped in 3 days after payment
