IC693PWR321T GE Power Supply

IC693PWR321T GE Power Supply

⇒ Click here for good price IC693PWR321T

Contact Us

Email: miya@mvme.cn (KLICK)

QQ: 2851195450

Tel: 86-18020776792(KLICK)

Skype:miyazheng520(KLICK)

PRODUCT DETAILS

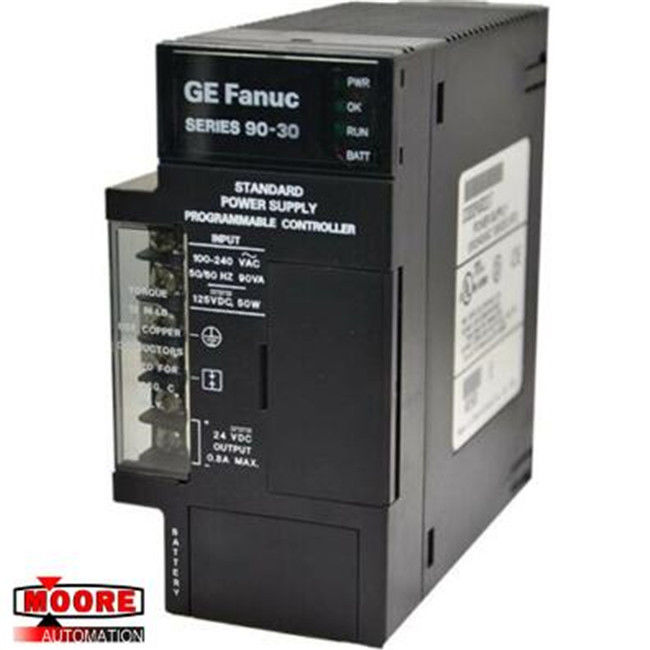

The GE Fanuc IC693PWR321 module is a power supply module from the 90-30 Series of output replay modules. It powers the processing capabilities of the Fanuc Series 90-30 PLCs. It is located in the leftmost slot of the baseplate. It comes with a power rating of 30 Watts. It can work with both AC and DC power supplies. The input voltage source of the device must have voltage ranges between 85 and 264 Volts AC or 100 and 300 Volts DC. It provides 3 different voltage outputs: 5 Volts DC, 24 Volts DC voltage that provides power to circuits, and an isolated 24 Volts DC voltage supply that is used by some modules to provide external power. it has an inrush current of 4 Amps peak, with 250 milliseconds maximum. This programmable controller power supply device has a robust build and it is equipped with a battery.

The IC693PWR321 module is fully compatible with any CPU model. The power supply module is certified by the cULus and CE standards. It has been designed to work in a Class 1 Division 2 rated environment. The IC693PWR321 module comes with power supply limiting feature that protects the hardware immediately when there is a direct short. The power supply unit is equipped with 6 terminals for operator connections. It comes with an enhanced diagnostics feature that tracks all events and updates for the operators. A smart switch fusing is built inside the power supply device as a protection measure. For communication, the IC693PWR321 module is equipped with an RS-485 serial port. The serial port can be used to connect to different peripheral devices and a CPU/computer.
