A1SY10 Mitsubishi Digital Output Module 16 Channel

A1SY10 Mitsubishi Digital Output Module 16 Channel

⇒ Click here for good price A1SY10

Contact Us

Email: miya@mvme.cn (KLICK)

QQ: 2851195450

Tel: 86-18020776792(KLICK)

Skype:miyazheng520(KLICK)

Product  Details

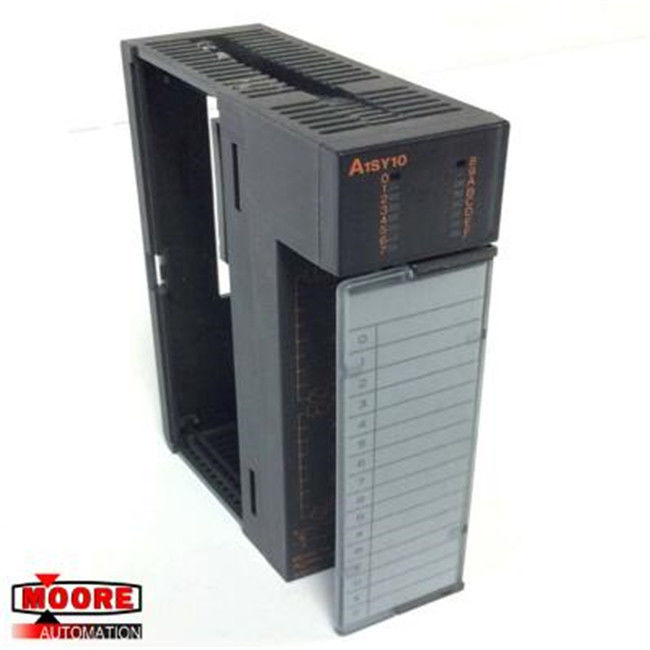

The Mitsubishi A1SY10 (A1S-Y10) is a relay contact output control module from Mitsubishi's Melsec-A series. Its weight is 0.55 pounds (0.25kg). As with the other types of A1S output modules, the insulation method for this A1SY10 is a photocoupler (or otherwise known as an optocoupler or an optical isolator) which transmits electrical signal between two sequestered circuits via infrared light through a diaphanous insulator. There is a LED indicator imbedded in the A1SY10 to signify itis operating.

The A1SY10 has a number of 16 output point with a rated switching for its voltage and current is 24V DC/2 AMP or 240V AC/2 AMP. The minimum switching load of this module is 5VDC and 1mA; the maximum switching voltage, 125VDC or 264V AC. The A1SY10's maximum switching frequency is 3600 times per hour. The internal current consumption with 5V DC is 120mA when all points are on. The time is takes for the output control module to respond is less than 10ms when turning it on and less than 12ms when turning it off.

The A1SY10 output control module will transform digital values to output values, after thisis done it outputs the voltage and current. As one out of six A1S output modules, it acts as a reliable interface between the A1S PLC system (to which it outputs to)and other output mechanisms with its 20 point terminal block connector. Wire sizes that are apposite for the Mitsubishi A1SY10's M3.5 x 7 screws, which are in the terminal block connectors, can only extend from 0.75 to 1.25mm2 in diameter.
