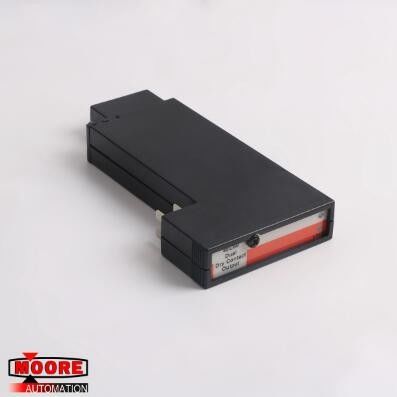

45C69 RELIANCE Output Module
⇒ Click here for good price 45C69
| Brand/Manufacturer |
RELIANCE/USA |
| Part Number |
45C69
|
| Alternate Part Number |
45C69 |
| Description |
MOTOR SERVO |
| Dimennsions |
15.5x7.5x2cm
|
| Weight |
0.12kg |
Contact Us
Email: miya@mvme.cn (KLICK)
QQ: 2851195450
Tel: 86-18020776792(KLICK)
Skype:miyazheng520(KLICK)
Product Details
he 45C69 unit is an AutoMax Dual Dry Contact Output Module that was created by Reliance Electric. The OEM for this product no longer offers it new and its production has been halted, but AX Control might have this product in stock. The product’s availability is shown on our website, but you may contact us via phone or email for any additional details.
The 45C69 output module is made to be connected into the appropriate slot of an I/O rail. One such I/O rail is the 45C1 model, which was also made by Reliance Electric as part of the AutoMax line. If you are in need of a compatible I/O rail to use along with the 45C69 output module, then click on the link above to find the 45C1 I/O rail also on AX Control’s website.
The 45C69 output module has a total of two outputs that operate at an output Voltage range of 10.10 to 125 VAC and 0.10 to 30 VDC. The resistive output current of these two channels are 0.01 mA to 0.4 A at 125 VAC and 0.01 mA to 1 A at 30 VDC. The power dissipation is set to a maximum of 0.2 W for every output channel. The maximum contact bounce is set to 3 milliseconds while both the maximum operating time and the maximum release time is set to 5 milliseconds. In addition to that, the maximum operating speed is set to 60 cycles per second and the contact resistance is set to 0.2 Ohms, including the rail resistance.
