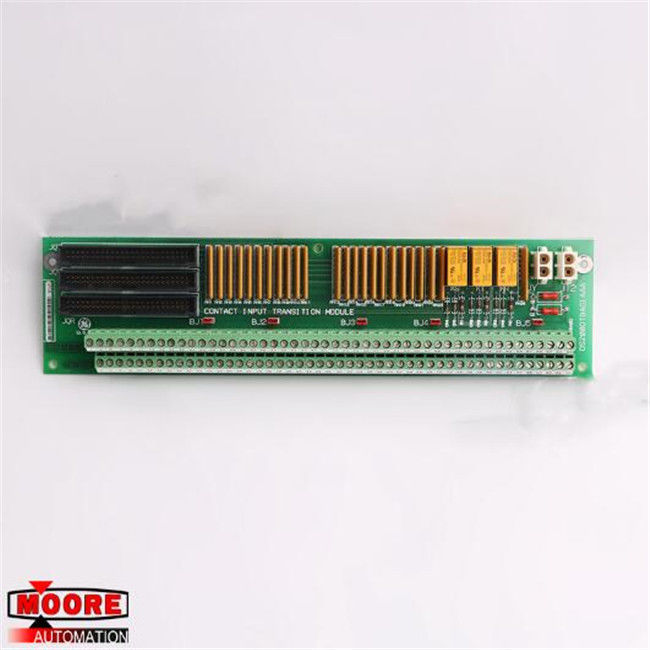

DS200DTBAG1AAA DS200DTBAG1A GE Digital Contact Terminal Board
⇒ Click here for good price DS200DTBAG1AAA
| Brand/Manufacturer |
GE/USA |
| Part Number |
DS200DTBAG1AAA
|
| Alternate Part Number |
DS200DTBAG1AAA |
| Description |
MOTOR SERVO |
| Dimennsions |
28.8x7.2x3.5cm
|
| Weight |
0.36kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The GE Digital Contact Terminal Board DS200DTBAG1AAA features two terminal blocks that each connect a maximum of 95 wires. DS200DTBAG1AAA also features 5 jumpers and two 2-pin connectors. The terminal blocks attach signal wires that send and receive information used by the drive. The potential is for a maximum of 190 wires attached to the GE Digital Contact Terminal Board DS200DTBAG1AAA and so you must be aware of the damage that can be caused to the other components and boards. A screwdriver is used to loosen the terminal to remove the wires and it might hit or scratch other components. To prevent that, use one hand to guide the screwdriver to the terminal you want to loosen. Use one hand to turn the screwdriver.
Also have a good line of sight so that you can see where you are working. Also as you remove the signal wires, try to move them to one side and out of the way of the other boards. If possible, reinstall the signal wires before you install the replacement board to limit the opportunity to damage the fragile boards in the drive. If you are able to attach the wires, hold the board from the sides only and use two hands. Carefully maneuver the board into the cabinet and align the holes with the holes in the rack where you will install the board. When you perform the replacement it is necessary to wear a wrist strap and have the end of the strap attached to a metal structure that is not painted.
