| Place of Origin | USA |
| Brand Name | GE |
| Certification | CO.CQ |
| Model Number | IC697MDL654 |

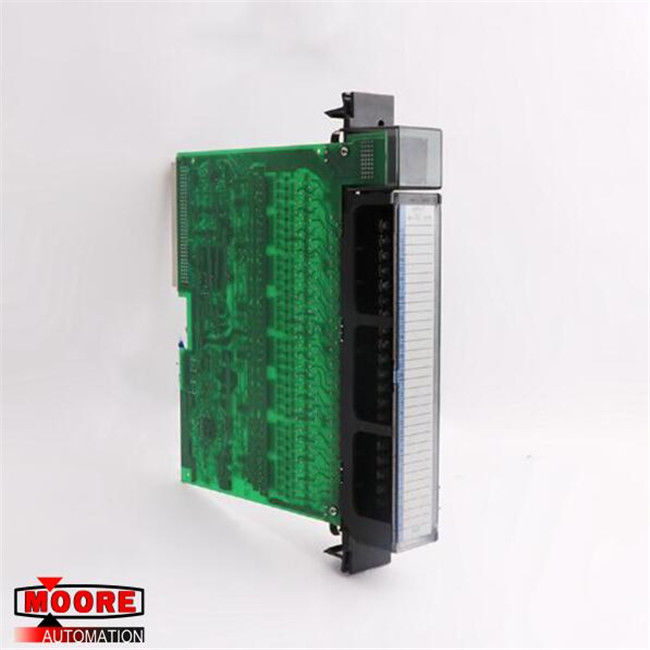

IC697MDL654 GE 48 Vdc Input, Positive/Negative Logic (32 Points)
⇒ Click here for good price IC697MDL654
| Brand/Manufacturer | GE/USA |
| Part Number |
IC697MDL654 |
| Alternate Part Number | IC697MDL654 |
| Description | MOTOR SERVO |
| Dimennsions |
4x22x29.3cm |
| Weight | 0.56kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The IC697MDL654 is a 48 VDC Positive/Negative Logic 32-Point Input Module by GE Fanuc for series 90-70 PLCs. The inputs of this module divide into four groups, each having a separate power supply. It can be used to connect to a variety of different switches and electronic proximity sensors with either two or three wire connectors. With some CPUs, it can also apply different input filter time schedules and may cause CPU interruption. To determine compatibility of input devices, such as two-wire sensors, ON and OFF states must be checked.
The IC697MDL654 connects to a backplane connector and secures itself in place with a jackscrew. To remove or install, power must be OFF, and then the user is free to disconnect. Untightening the safety screw and pressing the clips on the back of the cover allow the terminal board to disengage. To wire the terminals, wires #22 to #14 can be used. Once everything is connected, the wire bundle can be secured with a tie at the bottom of the terminal board. A hinged door provides both coverage of the inside of the board as well as space for an identification label.
Every IC697MDL654 module includes a mechanical key. This key hooks onto the board below the connector. When it is attached to a slot, no other type of module can be connected on that slot. To assure proper ventilation, install the module in a way that provides at least six inches of empty space around it.
Main Products
The advantage brands and series of our company are as follows:
【Honeywell】Module DCS / PLC
【Emerson / Delta V】Module
【ABB】Input Output Module
【AB】Module / Touch Screen
【GE/Fanuc】IC69 Series PLC
【Bently Nevada】3500 system
【Yokogawa】Pressure Transmitter
【Yaskawa】Servo Drive / Servo Motor
If you need detailed technical information, welcome to contact us.
