DS200FCSAG2A DS200FCSAG2ACB GE Current Sensing Interface Card
⇒ Click here for good price DS200FCSAG2A
| Brand/Manufacturer |
GE/USA |
| Part Number |
DS200FCSAG2A
|
| Alternate Part Number |
DS200FCSAG2A |
| Description |
MOTOR SERVO |
| Dimennsions |
22.8x12.6x2cm
|
| Weight |
0.18kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The DS200FCSAG2A, from General Electric, is designed as a Current Sensing Interface Board. A current sensing interface board is typically used to measure electric current and to provide a path between other board components for that current. The DS200FCSAG2A is used in GE Speedtronic systems like the Mark V. This system is a TMR or triple modular redundant control system for steam and gas turbine systems. The DS200FCSAG2A is no longer actively manufactured by General Electric but can be purchased from AX Control as a reconditioned board.

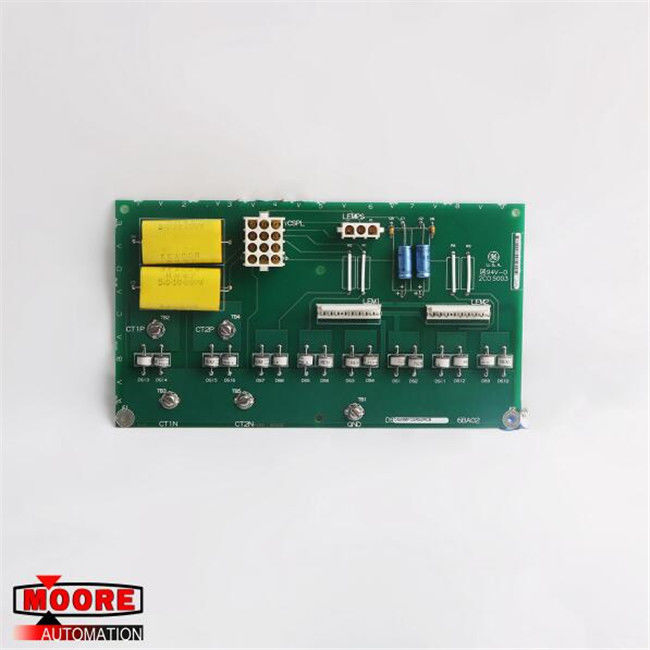

The DS200FCSAG2A is a small board with few components. It is marked on two edges for alignment. These edges are notched along their surface. The board is drilled in all corners. Two corner holes are ringed with a conductive material and are marked as E1 and E2. The board is marked with codes like 6DA02 and 6BA02.
Board components used on the DS200FCSAG2A include several types of capacitors. This includes two Seacor 5.0 10 200V polyester vinyl capacitors, two small ceramic capacitors, and two electrolytic capacitors. The board has eight sets of two diodes, sixteen in all, placed on the board in a single line. It has four resistors marked but uses surface wires in place of traditional resistor components.
