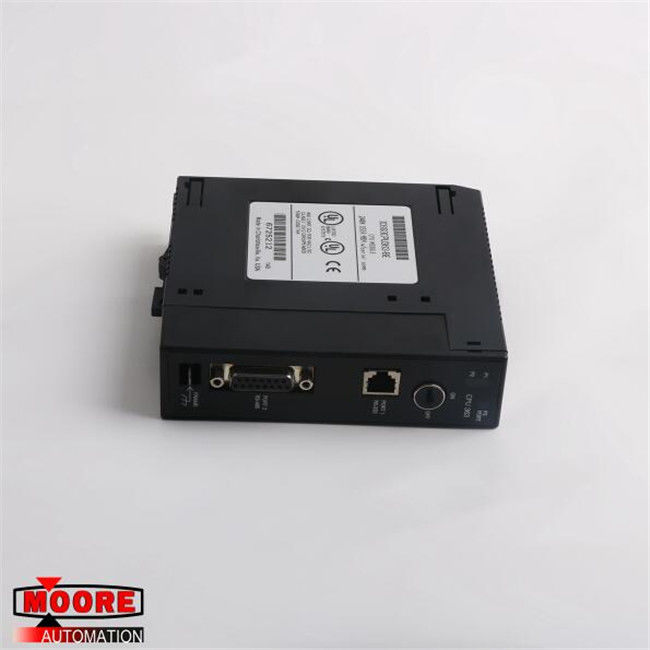

IC693CPU363 GE CPU Controller Module

IC693CPU363 GE CPU Controller Module

⇒ Click here for good price IC693CPU363

Contact Us

Email: miya@mvme.cn (CLICK)

QQ: 2851195450

Tel: 86-18020776792(CLICK)

Skype:miyazheng520(CLICK)

Product Details

The GE Fanuc IC693CPU363 is a Module of GE Fanuc series 90-30 PLC systems. It connects to one of the CPU slots on a baseplate. This CPU is of type 80386X and has a speed of 25Mz. It gives the baseplate the ability to connect to up to seven remote or expansion baseplates. The power required for it to work is +5VDC and 890mA current. It has a battery to back up a clock and can be overridden. When it operates, its temperature can vary from 0 to 60 degrees in ambient mode.

GE Fanuc IC693CPU363 module has three ports. The first port supports SNP or SNPX slave on the power connector. The two other ports support SNP or SNPX master and slave, and RTU slave. It is also compatible with RTU master and CCM Modules. To support RTU master, a PCM module is needed. Connectivity is also provided by a LAN port that supports FIP, Profibus, GBC, GCM, and GCM+ modules. It also supports multidrop.

The total user memory of the GE Fanuc IC693CPU363 module is 240 kilobytes and the typical scan rate of 1 kilobyte of logic is 0.22 milliseconds. It has 2048 input (%I) and 2048 output (%Q) points. The discrete global memory (%G) of the CPU is 1280 bits. Internal Coils (%M) take a space of 4096 bits and Output or temporary Coils (%T) deploy 256 bits. System Status Referenced (%S) use 128 bits.

The Register Memory (%R) can be configured with either Logicmaster or Control v2.2. Logicmaster configures the GE Fanuc IC693CPU363 Module memory in 128 word increments up to 16,384 words. Control v2.2 can do the same configuration deploying up to 32,640 words. Analog inputs (%AI) and outputs (%Q) can be configured exactly like the Register Memory using the same programs. GE Fanuc IC693CPU363 has system registers that consist of 28 words.
